Food Grade Beverage Pump TL Series

  • Flow Rate: 3~ 12L/MIN
  • Max Head: 2~8Meter
  • Rated Voltage: 12V 24V
  • Liquid Temperature: 0-100°C

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • TL Food Grade Beverage Pump,Coffee pump
  • TL Food Grade Beverage Pump,Coffee pump
  • TL Food Grade Beverage Pump,Coffee pump
  • TL Food Grade Beverage Pump,Coffee pump
■ Overview

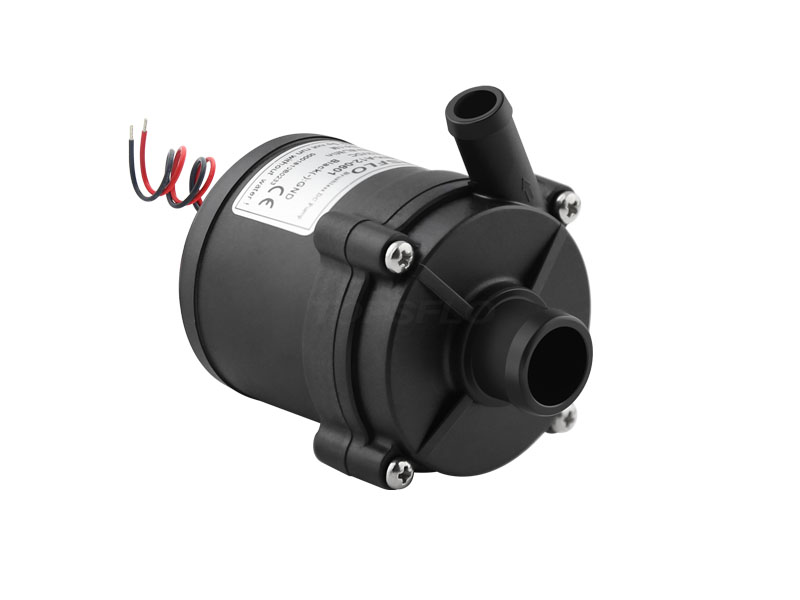

TL Food Grade Beverage Pump

12v 24V micro water pump food grade hot water circulation pump

Small Size, Light Weight
Saving space, suitable for many smart home appliances

High Temperature Endurance
Imported raw material, high-temp endurable, no leakage

WRAS Certificate
UK WRAS Drinking water safety ceritified
25dB(A), Super Quiet
Unique design for ultra-low noise

Features:

Advanced magnetic driving technology, static-seal without any leakage forever

High efficiency ECM brushless DC motor with long lifetime

Wide voltage range suitable for battery power supply

High precision one time injection moulding between permanent magnetic rotor and impeller realized the lower noise

Max temperature 100℃

All wetted materials FDA approved for safety usage

Heavy duty work,can sustain 24 hours continuous running
Stable flow


Application:

Home appliance pump
Water Dispenser, Water Coolers
Coffee Maker, Coffee Machine
Under-sink filtered Hot Water Heater
Beverage Dispenser, Juice Machine

■ Specifications

Mini Brushless DC Centrifugal Pump
TL-B10-C TL-B03 TL-B09
7~12L/min  3~8Meter 4.8~6L/min   1.2~2Meter 6L/min
 1.2Meter
■ Parameter

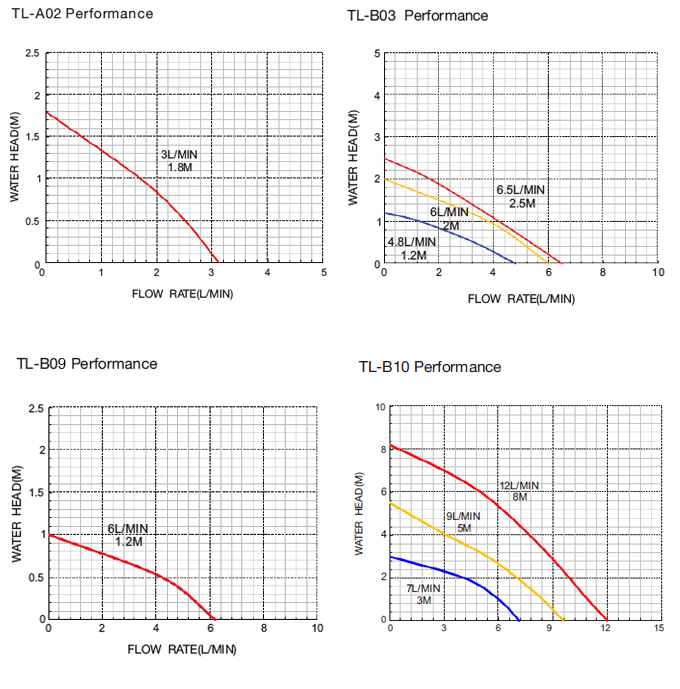

■ Curve & Dimension
