■ Overview
Why Choose TOPSFLO Commercial Coffee Machines Milk Transfer Pumps?

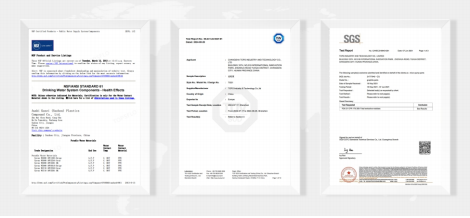

1. NSF, LFGB, FDA standards reduces the risk of milk residue
Selected NSF, LFGB, FDA certified materials, the compact internal structure minimizes dead zones and crevices, enabling fast and thorough cleaning while significantly reducing residue buildup from perishable media such as milk

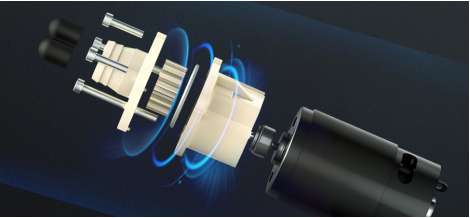

2. Imported unique seal design zero leakage under high pressure
The unique imported sealing system ensures stable operation unde hign pressure with 0 leakage risk, Specially designed gears, produced with high-precision molds, feature minimal dearance and no interference,ensuring consistent fow under varying pressure.

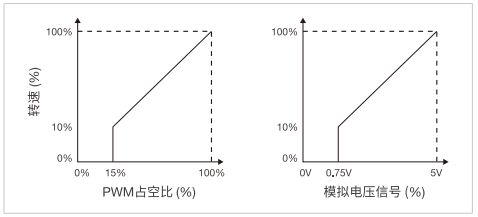

3. Duty cycle stepless adjustment, Precise milk temp control
DC gear pump supports 15-100% stepless duty cycle adjustment for accurate temperature control, delivering consistent mlk-based beverages,ldeal for commercal cofiee machines. it meets the demands of quality and efficiency in the high-end market.

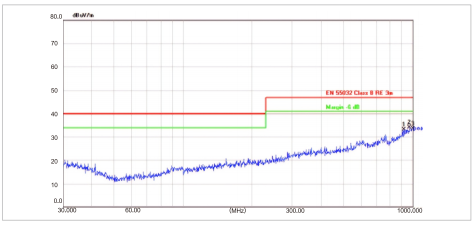

4. Low-Interference Drive, EMC-Compliant Motor Design
The motor is engineered to meet international electromagnetic compatibility (EMC) standards, ensuring stable operation without interfering with other electronic devices, while prowiding sufficient margin for certification compliance.
Application:
Fully Automatic Commercial Coffee Machine Milk Transfer System
Pump for milk system
1. NSF, LFGB, FDA standards reduces the risk of milk residue
Selected NSF, LFGB, FDA certified materials, the compact internal structure minimizes dead zones and crevices, enabling fast and thorough cleaning while significantly reducing residue buildup from perishable media such as milk
2. Imported unique seal design zero leakage under high pressure
The unique imported sealing system ensures stable operation unde hign pressure with 0 leakage risk, Specially designed gears, produced with high-precision molds, feature minimal dearance and no interference,ensuring consistent fow under varying pressure.
3. Duty cycle stepless adjustment, Precise milk temp control
DC gear pump supports 15-100% stepless duty cycle adjustment for accurate temperature control, delivering consistent mlk-based beverages,ldeal for commercal cofiee machines. it meets the demands of quality and efficiency in the high-end market.
4. Low-Interference Drive, EMC-Compliant Motor Design
The motor is engineered to meet international electromagnetic compatibility (EMC) standards, ensuring stable operation without interfering with other electronic devices, while prowiding sufficient margin for certification compliance.
Application:
Fully Automatic Commercial Coffee Machine Milk Transfer System
Pump for milk system
■ Specifications
Technical data
| Brand | TOPSFLO |
| Model | TG01-A24-B01-0204 |
| Max Pressure | 4 bar |
| Max Flow Rate | 2.5L/Min |
| Continue work Pressure /System Pressure (max) | 0.25MPa/0.4MPa |
| Voltage | 24VDC |
| Operating voltage range | 24V:18~28VDC |
| Max Speed | 4400RPM |
| Work mode | Intermittant |
| Material | Gear:Plastic Oil Seal: FKM /HNBR Center shaft / Gaskets: SUS304 Sealing ring: EPDM / Silicone |
| Motor Type | Brushed DC Motor |
| Seal Type | Lip seal |
| Life | 1000H |
| Certification | NSF, FDA, LFGB, REACH,CE,RoHS |
| Fluid Type | water, milk, beverages |
| Fluid Temperature Range | 0 to 80 °C |
| Storage environment requirements | Temperature：-30℃~70℃， Humidity：60%RH |
| Work environment requirements | Temperature：-25℃~70℃， Humidity：60%RH |
| Noise Level | 62(dBA/1M) |
■ Parameter
| Model | Product Code | Rated Voltage | No load Current (A) | Max. Load Current (A) |
Head (Bar) |
Flow (L/min) |
| TG01 | TG01-A12-B01-0204 | 12 | 0.9 | 1.8 | 4 | 2.5 |
| TG01-A24-B01-0204 | 24 | 0.6 | 1.8 | 4 | 2.5 |
OEM Customization Available

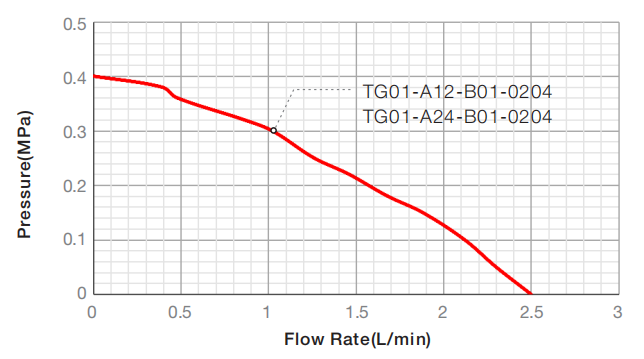

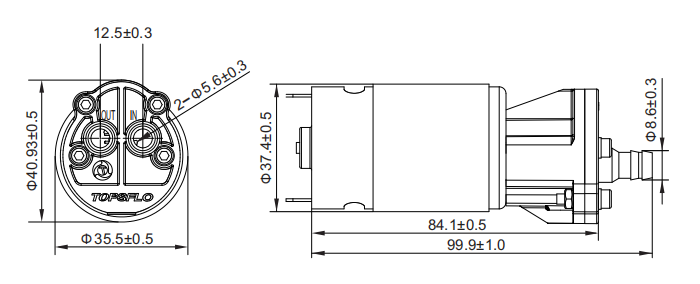

■ Curve & Dimension
