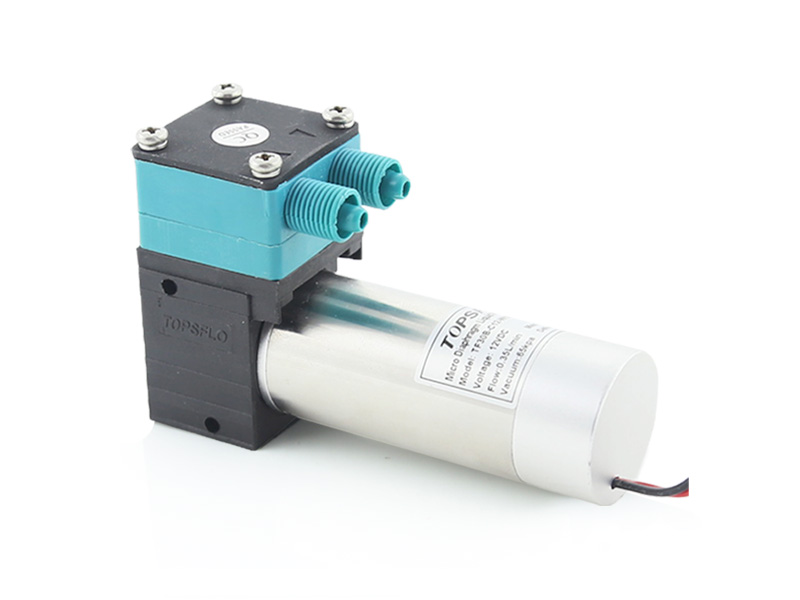

■ Overview
TOPSFLO micro diaphragm liquid /vacuum pumps are based on a simple principal, the circular power from the motor is converted into oscillating movement by an eccentric, which moves up and down its central point, this motion is then transfer redto a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action.
TF 30B pumps can be mounted in any position and can deliver up to 350 ml/min depending on the model and will operate against pressures of up to 1 bar.
Features:
● Small and powerful
Micro design and maximum performance resulting from built-in technology are the outstanding characteristics of this product.
● Self-priming and excellent for pressure
Sophisticated diaphragm technology and precise valve structures enable performances from 8.85 in .Hg suction and 14.5 PISG pressure.
● Dry running, durable and maintenance free
The carefully considered design of these pumps allows them to be run dry and ensures safe operation and a long life even under the most severe conditions.
● Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
● Uncontaminated flow
No contamination of the media due to oil-free operation
● Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
● High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
● Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ，material combinations for the parts which allows the corrosive gas to be pumped.
● Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected

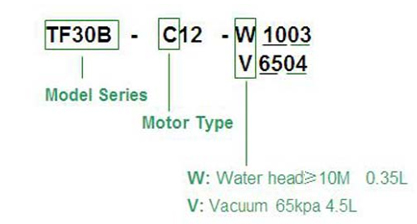

MODEL CODE FOR EASY ORDERING
The model code is identical to the order number,it is made up as follows:
C Motor- Coreless Brushless DC Motor , lifetime 15,000hours
(Note: other lifetime choices also available: A Motor -3000hours Premium duty brushed; B Motor -1500hours normal brushed; D Motor- 15000hours coreless brushless; H Motor- 10000 brushless.)
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Environmental/water treatment
Food/ toxicology
Laboratory
Cleaning industry
Printing
Fireplace
TF 30B pumps can be mounted in any position and can deliver up to 350 ml/min depending on the model and will operate against pressures of up to 1 bar.
Features:
● Small and powerful
Micro design and maximum performance resulting from built-in technology are the outstanding characteristics of this product.
● Self-priming and excellent for pressure
Sophisticated diaphragm technology and precise valve structures enable performances from 8.85 in .Hg suction and 14.5 PISG pressure.
● Dry running, durable and maintenance free
The carefully considered design of these pumps allows them to be run dry and ensures safe operation and a long life even under the most severe conditions.
● Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
● Uncontaminated flow
No contamination of the media due to oil-free operation
● Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
● High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
● Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ，material combinations for the parts which allows the corrosive gas to be pumped.
● Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected
MODEL CODE FOR EASY ORDERING
The model code is identical to the order number,it is made up as follows:
C Motor- Coreless Brushless DC Motor , lifetime 15,000hours
(Note: other lifetime choices also available: A Motor -3000hours Premium duty brushed; B Motor -1500hours normal brushed; D Motor- 15000hours coreless brushless; H Motor- 10000 brushless.)
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Environmental/water treatment
Food/ toxicology
Laboratory
Cleaning industry
Printing
Fireplace
■ Specifications
| 1 | Motor Type | Brushless DC motor |
| 2 | Max flow rate | water:0.35L/Min, gas:4.5L/Min |
| 3 | Water lift | ≥10M , Max vacuum: 65Kpa |
| 4 | Voltage | 6V/12V/24V |
| 5 | Ideal Life Time | 15000 Hours |
| 6 | Functions | Can dry-running, Self-priming |
| 7 | Pump Theory | Diaphragm pump |
| 8 | Ambient Temperature | 41 to 158 F(5 to 70C) |
| 9 | Use Place | Indoor |
| 10 | Media: | Most Liquids and Gases |
| 11 | Noise Class form 1M | 50dB /Max |
| 12 | Working Mode | Continuous or Interrupt |
| 13 | Inlet | OD 4.9mm/ID 2.8mm |
| 14 | Outlet | OD 4.9mm/ID 2.8mm |
| 15 | Hose suggestion: | ID 4.0mm |
| 16 | Dimension | 80mm*31mm*60mm |
| 17 | Weight | 240 g |
| 18 | Materials | pump head Nylon membrane EPDM / PTFE valve EPDM / FPM |
■ Parameter
| Model | Liquid Pump | Vacuum Pump (only vacuum reference TM30B-C/D) | Rated Voltage | No-load Current | MaxHead | Max Vacuum | Max Flow |
| (Item Number) | (Item Number for mix-usage) | (Vdc) | (A) | ( M ) | (KPa) | (L/min) | |
| TF30B-C | TF30B-C12-W1003 (inside controller) | TF30B-C12-V6504 (inside controller) | 6 /12 / 24 | 0.4/0.24 /0.15 |
≥10 | -65 | water: 0.35 gas: 4.5 |

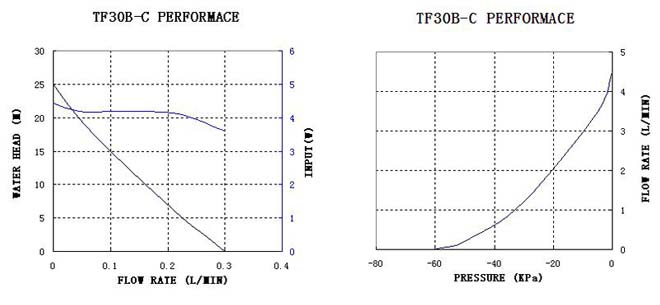

■ Curve & Dimension

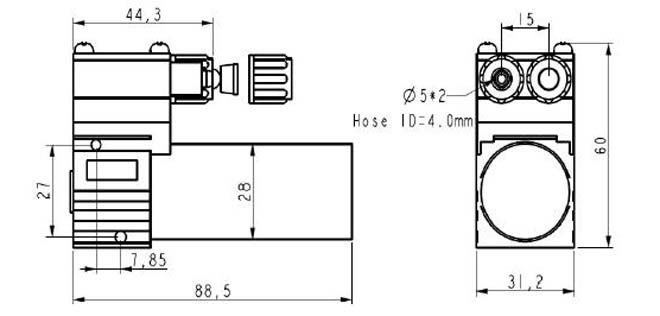

Dimension:
