TL-B03

  • Max Flow Rate: 6.5L/MIN
  • Max Static Lift: 2.5 M
  • Rated Voltage: 12V 24V
  • Impeller Type: Open impeller
  • Food Grade(Y/N): Y
  • Liquid Temperature: 0-100°C

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • Juicer pump
■ Overview

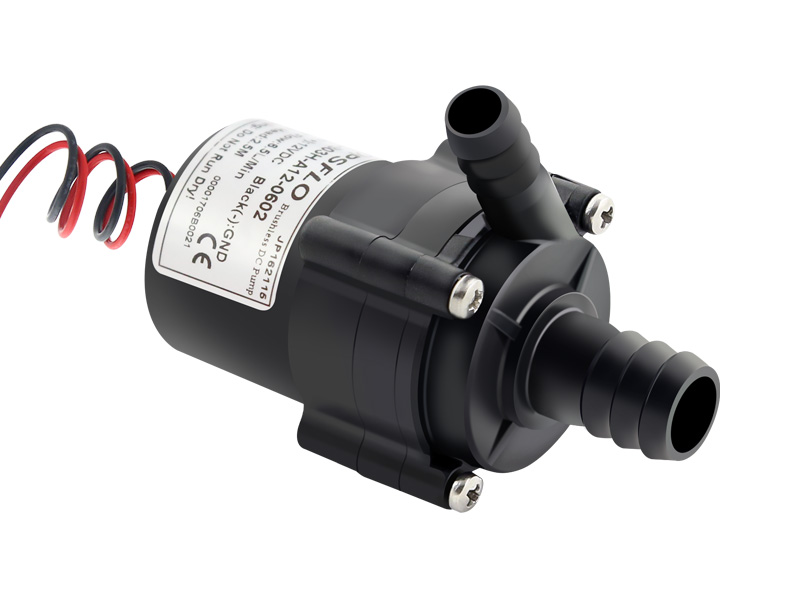

Mini Brushless DC Centrifugal Pump

Mini Brushless DC Centrifugal Pump
 Brushlss DC Water Pump factory

About TOPSFLO Factory

♦ 16000 modern factory with its own physical property rights, ESD anti-static control dust free workshop,

100+ sets of professional imported equipment
♦  4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦  More than 50 patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦  Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
Brushlss DC Water Pump TL-B10 CUSTOMIZED

24v DC motor water pump factory

Our TL-B series design features
micro centrifugal pumps powered by brushless DC motors. They are designed to be quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, food grade material, high-temperature resistance.

Application:

Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser

Water purifier/water dispenser, Tea maker, Milk dispenser, steam ovens, Laboratory

Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress



Product Features:

.High efficiency brushless DC motor with long lifetime 20,000hours
.Heavy duty work,can sustain continuous 24hours work
.Special designed high efficiency closed-impeller for low power consumption
.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
.All wetted materials FDA approved to be safety usage
.Durable permanent magnetic rotor/impeller and fine ceramic shaft
.Low or no maintenance
.Blocked protection
.Certificate: CE,RoHS,FDA,REACH,WRAS,ISO9001,TUV IATF16949



Brushlss DC Water Pump TL-B10  c
Brushlss DC Water Pump TL-B10 material


Usage Note:
1.Dry-running is prohibited.
2.Reverse polarity is not allowed (except customized).
3.The pump if dropped or with heavy vibration do not use.
4.Liquid contain impurities or magnetic particles are not allowed.
5.Liquid temperature over 80°C is not allowed (except high temperature models).
6.Acidic or alkaline liquid is prohibited (except customized).

■ Specifications
Max Flow Rate 6.5L/MIN
Max Static Lift 2.5 M
Rated Voltage 12V/24v
Impeller Type Open impeller
Food Grade(Y/N) Y
Liquid Temperature -40-100°C
Pump Theory Centrifugal pump
Motor Type Brushless DC motor
Ambient Temperature -40-40°C
Media Pure Water
Use Place Indoor
Working Voltage Range 6V-18V/12V-28V
Power Consumption 7.5W
Noise  < 35dB
Ideal Life Time 20000 Hours
Working Mode Continuous
Power Supply DC power supply, battery
Remarks Can’t dry-running, not Self-priming
■ Parameter
Model     Product Code  Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
B03 TL-B03-A12-0602 6.5 12 0.43 2.5 5.16
TL-B03-A24-0602 6 24 0.2 2 4.8

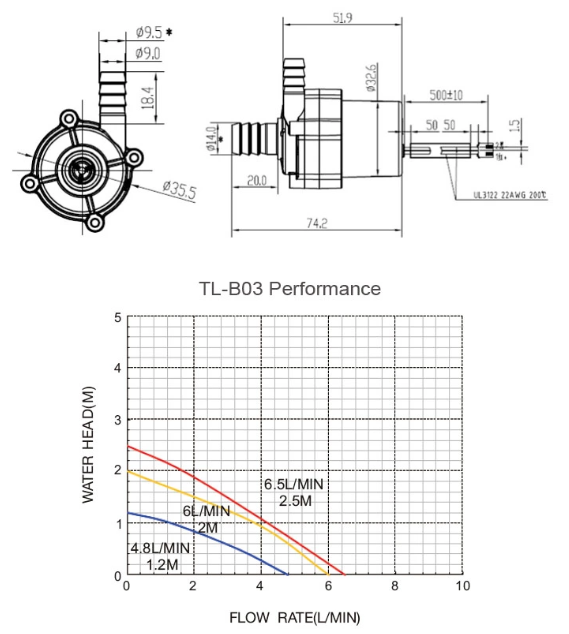

■ Curve & Dimension
mini pump,12V food pump,Water purifier water pump,Juicer pump,food brushless centrifugal pump,Top Water Purifier pump
Instant filtered boiling pump,Instant filtered drinking water systems pump
