Solar DC Circulation Pump TS5

  • Max Flow Rate: 8.4L,10L,12.6L
  • Max Static Lift: 1.6M,2.4M,3.2M
  • Power Consumption: 5W 10W 15W
  • Impeller Type: Open impeller
  • Liquid Temperature: 0-110°C
  • Food Grade(Y/N): Y

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • solar water circulating pump
■ Overview
solar dc circulation pump TS5 manufacturer


● DC brushless motor with energy efficiency technology by micro processor
● Soft start at very low in-rush current, good convenient working directly with PV panel
● Advanced magnetic drive technology for static-impeller, without any leakage for ever
● Brushless, Sealless, Extremely Long Life, Rated at >20,000 hours.
● Heavy duty work, can sustain continual 24 hours’ work
● Can Run With Hot Water (212 deg F) and at High Pressure (145 psi)
● 1/2" NPT (US Standard) Threads on both sides.
● Over-voltage protection ● Over-Current Protection
● Blocked-Protection  ● Polarity Protection  ● Dry-running Protection
● Low or no maintenance ● Low power consumption

Areas of Use
solar circulation pump
● Portable power supplies  ● Solar water heater
● Solar Domestic Water Heating Systems - closed loop
● Hot pump air conditioner
● Air energy water heater   ● Hot Water Circulation  ● Radiant Floor Heating
● PV-Direct Applications / Solar Applications  (To be used with a 5W 10W 15W silicone crystal pv panel)
● Liquid Transfer ● Beer Brewing ● General Purpose Pumping

■ Specifications
Max Flow Rate 8.4L,10L,12.6L
Max Static Lift 1.6M,2.4M,3.2M
Power Consumption 5W 10W 15W
Impeller Type Open impeller
Liquid Temperature 0-110°C
Food Grade(Y/N) Y
Pump Theory Centrifugal pump
Motor Type brushless DC motor
Ambient Temperature -40-70°C
Media Pure Water
Use Place Indoor
Rated Voltage 12V
Working Voltage Range 8~24V
Ideal Life Time >20000 Hours
Working Mode Continuous
Inlet/Outlet NPT/BSP 1/2
Power Supply DC power supply, battery, solar powered
Remarks Can’t dry-running, not Self-priming
■ Parameter
Model Product Code Max Flow Rate
Rated Voltage (VDC) Current
Max Water Head
  TS5-A12-5PV 8.4 12 <0.41 1.6 <5
TS5 TS5-A12-10PV 10 12 <0.83 2.4 <10
  TS5-A12-15PV 12.6 12 <1.25 3.2 <15
  Pump can be powered by solar panel directly

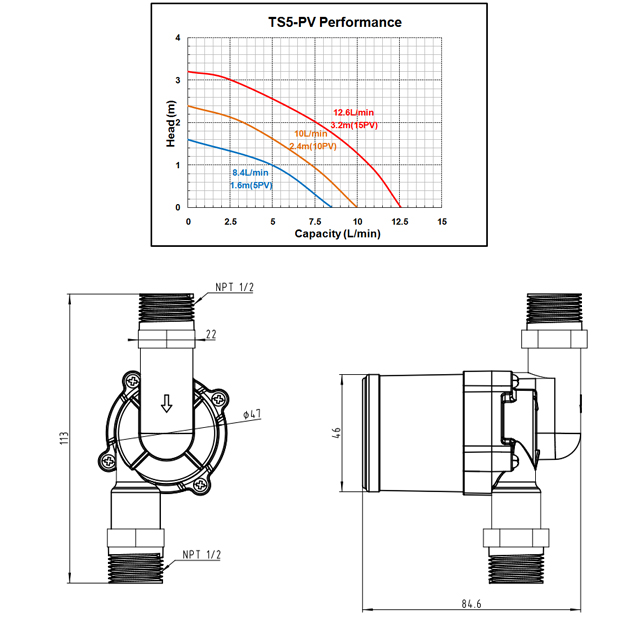

■ Curve & Dimension
solar dc circulation water pump TS5 manufacturer
