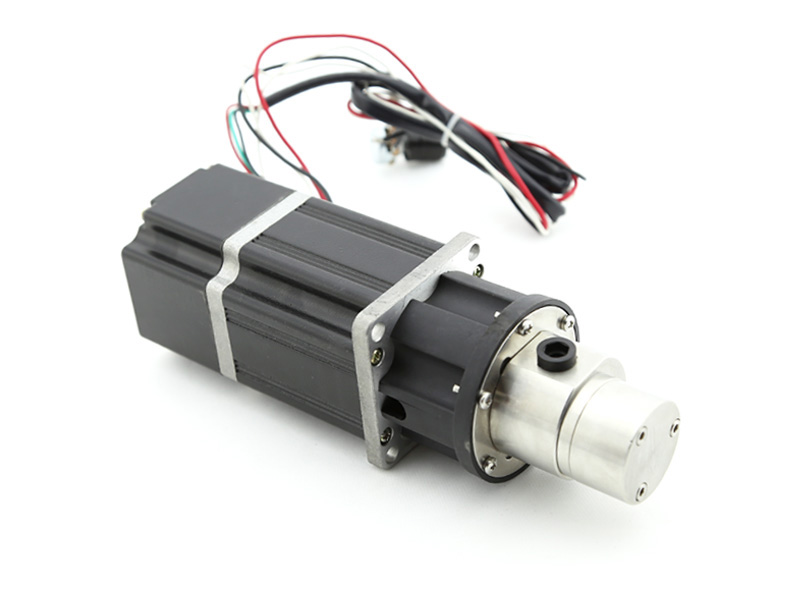

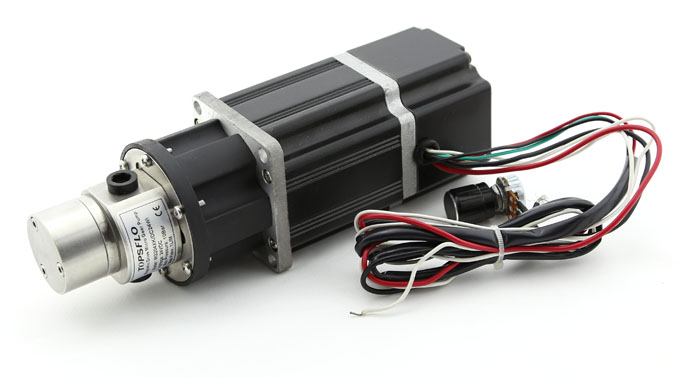

MG200 Series / Magnetic Drive Micro Gear Pump (DC brushless motor, controller build-in)
Using magnetic coupling drive without leakage, 316 L stainless steel shell, PEEK materials gear, PTFE sealing materials,use brushless DC motor combination with smaller size, can with built-in limit pressure valve, the flow rate can be realized adjustment without steps.Micro Gear Pump Features:
1.High differential pressure capability，small size
2.Excellent suction capability
3.Smooth, Pulseless Delivery
4.Easy to Service Chemical resistance
5.DC Motor drive.
6.Stable fluid stream ideal for precision control and analytical applications
7.Excellent for lubrication and recirculation
8.Repeatable and predictable flowrate
9.Reversible
10.Well suited to pumping hazardous or hygeinic fluids
11.Brushless motor Longer life
12.Safer fluid containment
• Medical equipment pump • Hemodialysis apparatus pump
• Laser apparatus pump • Lubrication pump
• Ink-Jet printing systems (CIJ Ink Printers to Paint metering and Transfer applications)pump
• Hydrogen electrolyzer pu• Fuel cellmp • Laboratory instrumentation pump
• Water treatment pump • Sampling pump
• Food processing equipment （Coffee pumps, hot and cold drinks, mixing, milk,and carbonation）pump
• Sanitization pump• EV charger, Other Liquid-Cooling system
• Atmospheric water generator, Atmospheric drinking water devices • Medical beauty (Aesthetic treatments / Medical laser device/hair removal device)
Widely used in hemodialysis machines, printing machine,pictorial machine, medicine, chemicals,water treatment, printing, cleaning, packaging, filling machines, food processing, and other areas of liquid delivery, particularly suitable for printing machine,pictorial machine,barcode machine.
■ Specifications
| Motor Type | Brushless DC motor(controller build-in) |
| Max flow | 3.5L/min |
| Max pressure | 10Bar |
| Rated Voltage | 24V |
| Suction Height | 1~2M |
| Media: | Most Liquids, acid and alkali, salt, organic solvents, oils. |
| Pump Theory | Gear pump |
| Fluid Temperature: | -10 ℃ ≤ T ≤ 100 ℃ (except for the freezing) |
| Humidity environment: | ≤ 85% |
| Ambient temperature: | -10 ~ 50 ℃ |
| Use Place | Indoor |
| Fluid viscosity: | 0 ~ 3000 CPS |
| Ideal Life Time | 8000hours |
| Working Way | Continous |
| Weight | 1.5kg |
| Functions | Can dry-running, Self-priming |
■ Parameter
| Item Number | Max Head Pressure (Bar) | Max Flow scope (ml/Min) | Power (W) | Voltage (V) | Inlet/Outlet Diameter | ml/rpm (reference 3000RPM) |
| MG204XK/DC24WI | 10 | 20-1000 | 70 | DC24 | G1/8” | 0.27 |
| MG209XK/DC24WI | 7 | 100-2500 | 70 | DC24 | G1/8” | 0.65 |
| MG213XK/DC24WI | 7 | 300-3500 | 70 | DC24 | G1/8” | 0.75 |
| Note: 1. "04" means the gear with the height of 4mm, "09" means 9mm, "13" means 13mm . | ||||||
| 2. if needed : "L" limited pressure valve, " R " non return valve , please specially specify in advance. | ||||||
| 3. "XK" PEEK gear, "YT" Alloy gear, if the liquid contain rigid particles,such as pigment ink,recommend use YT gear. | ||||||

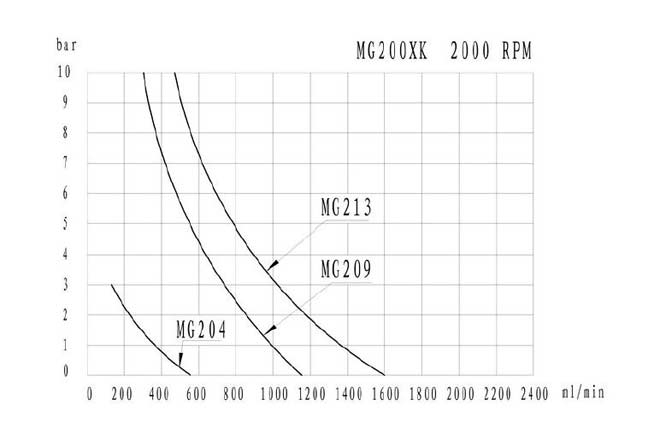

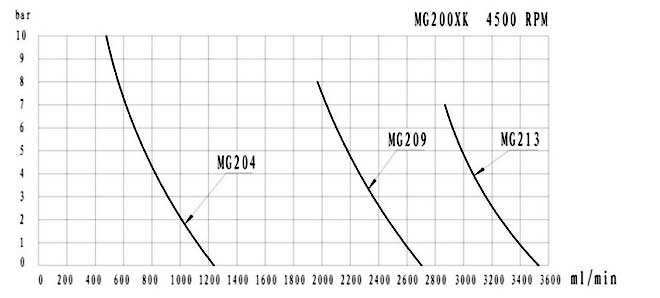

■ Curve & Dimension
Note: Usually suggested to work under 4000RPM, not higher than this.
Above test result basis on the medium of water.
Dimension:
