■ Overview
Features：
Advanced magnetic driving technology, staticseal,without any leakage forever.
High efficiency ECM brushless DC motor with long lifetime
Durable permanent magnetic rotor with one-off injection incorporated impeller to ensure high dynamic balance.
Heavy duty work, can sustain 24 hours continuous work.
Sustain 100°C (212°F) hot water circulation.
All wetted materials FDA approved to be of safe usage.
All wetted materials FDA approved to be of safe usage.
Anti-vibration rubber bracket.
Apply for liquid of pure water, antifreezesolution.
Low or no maintenance.
Low power consumption.
Over-voltage protection Over-current Blocked protection protection
Dry-running protection can be customized.
Applications:
Fruit and vegetable washing machine
Intelligent Toilet
Recreational Vehicle
EV Superchrager cooling
Dishwasher
Recreational Vehicle
EV Superchrager cooling
Dishwasher
Boosting System
Water Circulation
Drinking Industry
■ Specifications
| Model:TL-C02 | ||||||||
| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) | Speed (RPM) |
|
| C02 | TL-C02-A12-3408 | 34 | 12VDC | 4.5 | 8 | 54 | 5000 | |
| TL-C02-A24-3709 | 37 | 24VDC | 2.5 | 8.5 | 60 | 5300 | ||
■ Parameter
| Max Flow Rate | 37L/min |
| Max Static Lift | 8 M |
| Rated Voltage | 12V/24V |
| Motor Type | brushless DC motor |
| Liquid Temperature | -40-75°C |
| Ambient Temperature | -40-40°C |
| Medium | Water ,hot water |
| OD of Inlet / Outlet | 22.3mm/22.3mm |
| Dimension | 117 x73 x 94.7 mm |
| Remarks | Can't dry-running, not Self-priming |

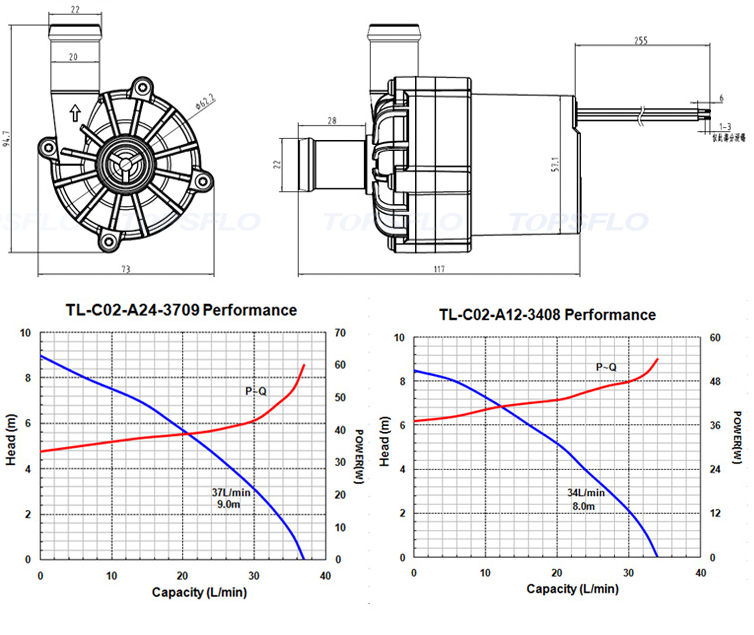

■ Curve & Dimension
