Under-sink filtered Hot Water Dispenser pump



Application:

Instant filtered boiling ,Chilled and sparkling water systems,under-sink hot water drink

Instant filtered drinking water systems,Under bench boiling water machine,under sink hot water dispenser

Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser

Product Features:

•.High efficiency brushless DC motor with long lifetime >20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.All wetted materials FDA approved to be safety usage
• High temperature resistance 100 degrees Celsius, stable flow

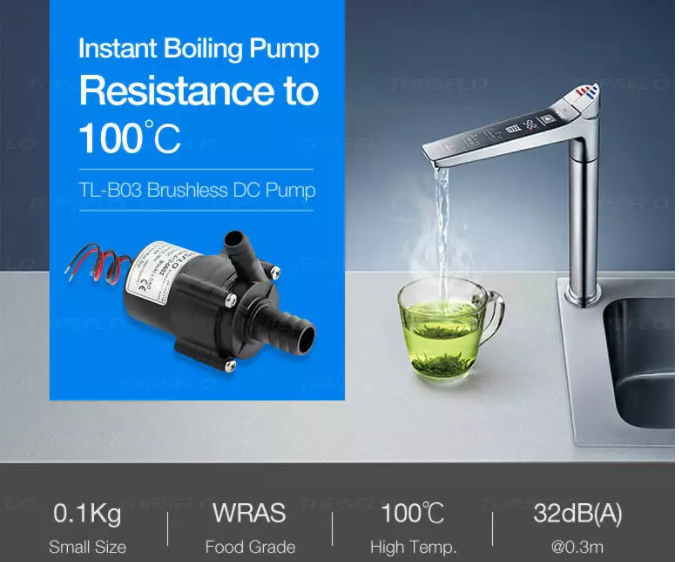

TL-B03

TL-B04

TL-B10

Product Code		Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
TL-B03-A24-0602		6	24	0.22	2	5.28
TL-B03-A12-0501		4.8	12	0.2	1.2	2.4
TL-B04-A24-0803		7.5	24	0.45	3.5	10.8
TL-B10-C24-0905		9	24VDC	0.65	5	15.6
TL-B10-C12-0905		9	12VDC	1.38	5	16.56

Get more Technical data, please contact us .

TOPSFLO Heat Resistant, Cavitation-Free Pump

• Heat Resistant • Cavitation-Free • No Stuck • Smart Control • Food-Grade

•

  1. Continuous High-Temp Operation

  ⋅ Imported plastic materials, no recycled content used. No cracking over time.
  ⋅ World-class electronic components and optimized therma design ensure low temperature rise, stable performance, and consistent auality under continuous hiah-temperature operation.




•

  2. High-Temp Exhaust Design


  ⋅ At liquid temperatures of 97°C-100°C, delivers up to 21% higher flow than same-power pumps.
  ⋅ Unique high-temp exhaust structure, pump maintains stable flow output even at high-temp-without increased noise or fluctuation.




•

  3. Precise Temperature Control

  ⋅ Equipped with a professional integrated electronic control system, enabling customized intelligent control and precise flow regulation to meet multi-temperature demands.
  ⋅ Ensures high accuracy and batch consistency, with flow variation within +5% under the same duty cycle.




• 4. Food-Grade Safety

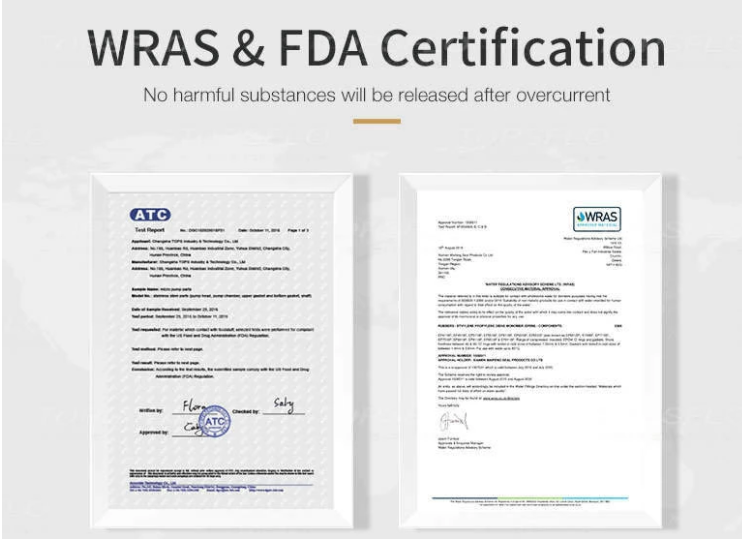

  ⋅ Complied with global food-grade standards, with NSF, FDA and WRAS certifications
  ⋅ All wetted materials are selected from premium global suppliers and pass stringent odor and safety testing,ensuring suitability for hiah-temp beverage applications.



Why Choose TOPSFLO High-Temperature Hot Water Dispenser Pumps?

TOPSFLO’s high-temperature hot water dispenser pumps have helped customers, including Billi and 3M, solve reliability challenges under high-temperature operating conditions.
TOPSFLO does not only provide standard pumps. We collaborate with customers through joint development programs, including:
• Pump selection samples
• Flow-head curves
• Speed control and FG signal guidance
• Food-grade certification reports
• High-temperature performance test data

TOPSFLO provides a complete high-temperature hot water dispenser pump solution designed for reliable performance, long service life, and stable user experience.
