Hot Water Circulation Pump C04-D

  • Max Flow Rate: 23L/min
  • Max Static Lift: 4M
  • Rated Voltage: 12V
  • Noise: 38dB(A)
  • Working rated: Continuously

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • D5 PUMP
  • D5 circulation pump
  • hot water tank pump
  • WRAS pump
■ Overview
Hot Water Circulation Pump
Laing Ecocirc D5 Solar Pump ,laing pump

The brushless DC micro water pump adopts advanced magnetic drive technology, the liquid rotates at high speed through the permanent magnet rotor, the static seal design replaces the traditional mechanical shaft seal, the liquid is completely isolated from the motor, avoids the problem of liquid leakage, and improves the service life and performance of the product.

l   The brushless motor has a lifetime in excess of  >20,000 hours

l   No leakage: one time injection rotor; static seal design, the liquid is completely isolated from the motor

l   Low noise at 1 meter distance:  ≤38dB(A)

l   The parameter can replace the LAING D5 pump

l   WRAS Approved

l    Intelligent Control like PWM, 5V or FG

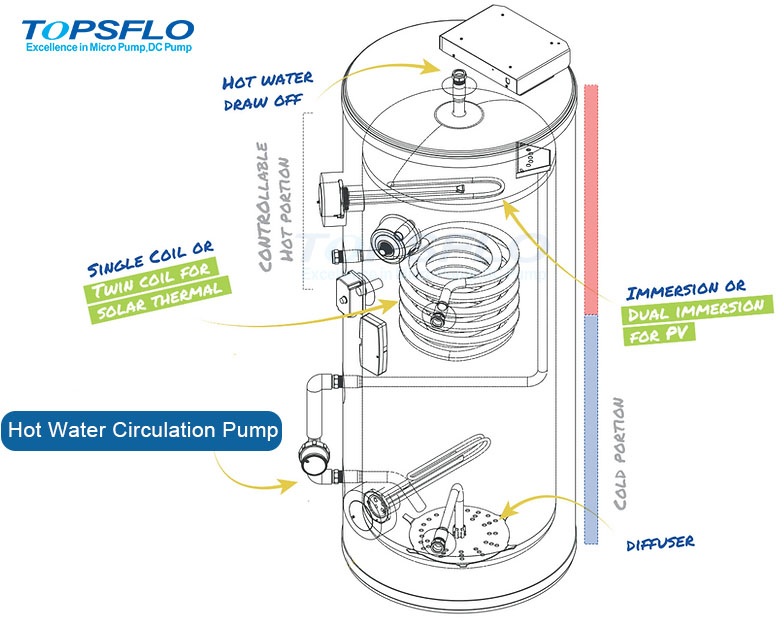

Φ Hot Water Tank/Heat Exchange Tank

Φ Hot Water Circulating systems for homes, RV's and boats

Φ Water heater
Φ Heat Pump DHW Tank, Bolier Tank

Φ Industry Cooling, Circulation system

tank Water Pump Laing pump

■ Specifications

Technical Data

Motor design: brushless DC motor

Voltage Range: 12V or 24 V DC

Max pressure:1.8MPa

Continue work Pressure :1MPa

The use of water temperature:'0~75

The environment temperature:'-2040

Acceptable media: tap water or cooling liquid

■ Parameter
Model     Product Code  Max Water Flow(L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Max Power(W)
TL-C04 TL-C04-D12-2304 23 12VDC 2.2 4 26.4

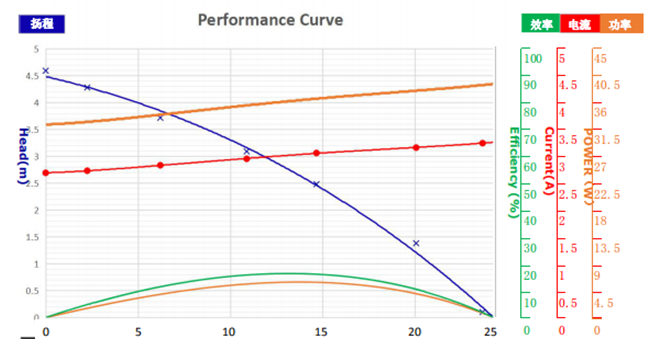

■ Curve & Dimension
 Hot Water Circulation Pump Manufacturer

hot water circulation pump
