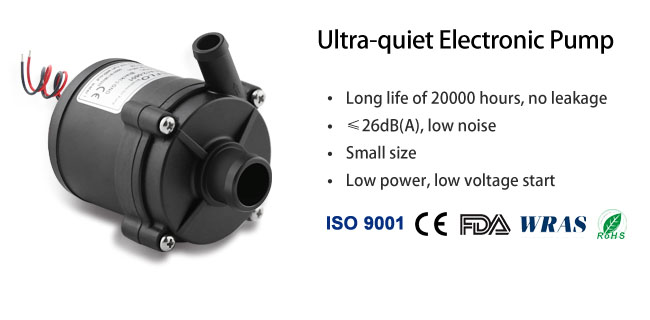

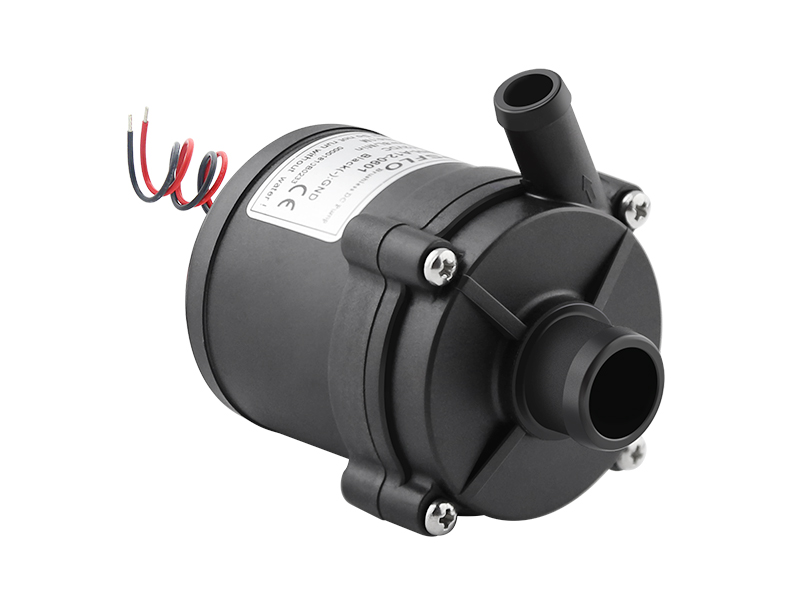

TL-B09

  • Max Flow Rate: 6L/MIN
  • Max Static Lift: 1.2M
  • Rated Voltage: 12V
  • Impeller Type: Open impeller
  • Motor Type: Brushless DC motor
  • Noise Class form 1M: 25dB /Max

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • Water Heating Mattress Pump
■ Overview
Features:
◇Advanced magnetic driving technology, static-seal without any leakage forever
◇Heavy duty work,can sustain 24 hours continuous running
◇High efficiency ECM brushless DC motor with long lifetime
◇Optimized 3 phase motor combined with intellectual IC ensure low EMI
◇Suspended durable permanent magnetic rotor for ultra quiet noise 25dB
◇Noiseless graphite bearing
◇All wetted materials FDA certified (food safe)
◇Max temperature 100℃
◇Low or no maintenance
◇IP protection level: IP65
◇Dry-running protection
◇Automatic blocked protection
◇Overcurrent protection, over-load protection
◇Polarity protection

Application:
● Water heating mattress
● Home circulating systems
● Computer cooling circulation
● Liquid transfer
● General purpose pumping
● Water dispenser/water coolers
● Coffee maker/coffee machine
● Beverage dispenser/juice machine
● Water purifier
● Tea maker
● Milk dispenser
● The fountain
● Hydroponics
■ Specifications
1 Max Flow Rate 6L/MIN
2 Max Static Lift 1.2M
3 Rated Voltage 12V
4 Impeller Type Open impeller
5 Motor Type 3 phase Brushless DC motor
6 Noise Class form 1M 25dB /Max
7 Pump Theory Centrifugal pump
8 Ambient Temperature -10-50°C
9 Media Pure Water
10 Waterproof Class IP42 or Submersible (optional)
11 Use Place Indoor Outdoor
12 Working Voltage Range 6~14V
13 Power Consumption 3W
14 Liquid Temperature 0-70°C
15 Ideal Life Time 20000 Hours
16 Working Mode Continuous
17 OD of Inlet 16.5 mm
18 OD of Outlet 10 mm
19 Dimension 69x44x65.09 mm
20 Weight 200 g
21 Power Supply DC power supply, battery, solar powered
22 Protection Functions Automatic dry-running protection Automatic blocked protection Overcurrent, overload protection Polarity protection
23 Remarks Not Self-priming
■ Parameter
Model     Product Code  Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
 TL-B09 TL-B09-A12-0601 6 ± 15% 12VDC 0.2 ± 15% 1.2 ± 0.3 2.4

Note:  1.pump itself meet: /F,food grade  2. /H type 70℃<liquid100, not H normal type liquid70   3. /S type can be customized, if submersible liquid should be 50

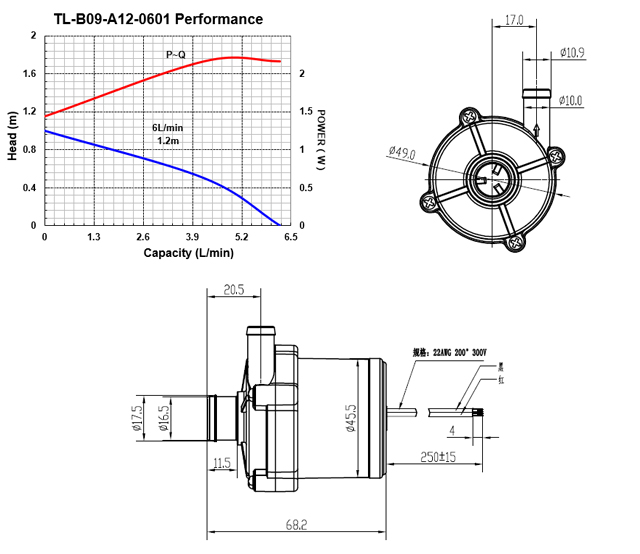

■ Curve & Dimension

Curve:


Dimension(mm)
:
