TD5 brewing

  • Max Flow Rate:: 25L
  • Max Static Lift: 5M

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • Beer brewing Micro DC pump
■ Overview

Product Features:

● With food grade stainless steel, very safe and reliable
● Advanced magnetic driving technology for staticseal,without any leakage forever
● High temperature resistant,can continuous circulate 110ºC(230F) hot water Material is high temperature 150ºC resistant,Material is flame resistant
● High efficiency ECM brushless DC motor with long lifetime 20,000hours
● Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
● Heavy duty work,can sustain continuous 24hours work
● Over-voltage protection, over-current protection
● Specialized structure design , Easy to cleaning
● Sustain 110℃ hot water circulation
● High effeciency, max flow rate up to 25LPM / 6.4GPM & head 5M /19FT
● Good heat releasing, less temperature rise
● Advanced magnetic driven technology, no leak forever
● Blocked-Protection protection,Polarity Protection, Over-voltage protection
● Low or no maintenance


Motor
DC brushless motor with energy efficiency technology use MPPT by micro processor, and variable speed & power consumption optional by dial control.Stable & advanced soft-starting function, very low in-rush current, perfect for working directly with PV panel.

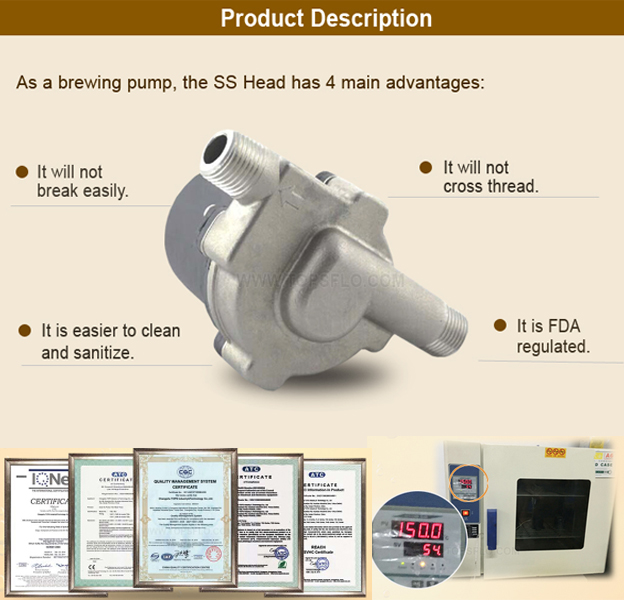

The head of the pump is made completely of stainless steel to reduce the risk of contamination.
1.Your regular cleaning should be to simply flush the pump with warm water or warm water with PBW.
2.If you feel that a deep cleaning is needed, the head of the pump can be removed completely by removing the 4 screws on the back of the pump.
3.After removing the head from the main body of the pump you will find 4 screws attaching the head to the impeller housing. These can be removed to open the impeller housing of the pump. Now each part can be soaked as needed.

Impeller
Highly efficient and dynamically balanced with fine stainless steel bearing for smooth ultra quiet operation.

Over voltage protection
When the voltage over 28V, the pump will auto-protect and shut off own power supply, when the voltage falls below 28V, the pump will restart automatically.

Over load protection function

This means that when the current is over the rated current, such as can arise if the impeller is stuck due
to debris. The pump will automatically stop to prevent damage, and will restart when the current falls again.

Application:
Home Beer Brewing
Hot Water Circulation
Beverage Dispenser
General Liquid Transfer


■ Specifications


(World-famous MEAN WELL adaptor if supplied a whole set by TOPSFLO  )
■ Parameter

■ Curve & Dimension
 Curve:


 Dimension(mm):
