Electric Auto Circulation Pump TA50

  • Max Flow Rate: 23L
  • Max Static Lift: 3M
  • Rated Voltage: 12V 24V
  • Impeller Type: Open impeller
  • Liquid Temperature: -40-125°C

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • 24V DC mini car water pump manufacturers
  • Engine Auxiliary Water Pump
  • automobile pumps brands
■ Overview


Engine Electric Auto Pumps

TOPSFLO is the only enterprise in China certified by German Rheinland TÜV double
quality system of ISO 9001(Certificate Registr.No.011001732975) and IATF:16949(Certified No. 0533129) in the micro pump industry

Car engine pre-heating pump

♦ -40°C-125°C    ♦ Cold startup
        ♦ Wide operating voltage range
 Low vibration
Car engine pre-heating pump



Features:

♦ DC brushless motor with long lifetime



♦ Heavy duty work, can sustain continual 24 hours

♦ Sustain -40~125°C, suitable for extreme outdoor environment

♦ Durable permanent magnetic rotor/impeller & fineceramic shaft

♦ Advanced magnetic drive technology for static-impeller,without any leakage for ever

♦ The motor with big machine movement optimization design, has very low temp rise

♦ Automatic polarity protection, overload protection, block protection special design to meet car vibration working condition, special design to meet car power supplying way which occur high peak voltage or unstable voltage

♦ Equipped with specializing car water-against connector  ♦ Applied liquid: pure water, antifreeze solution

♦ Low or no maintenance  ♦ Low power consumption



Protection functions:
·Automatic polarity protection ·Blocked protection



Typical Applications;
Car engine cooling circulation,Car engine pre-heating,Heating system (Car Auxiliary heaters & parking heaters),
Electric vehicles water circulation system,Normal Hot Water Circulation,Liquid Transfer,General Purpose Pumping
Engine Auxiliary Water Pump, Motorcycle Automotive Electric Water Pump | Car Pump Manufacturer

1.  With 20mm Inlet/Outlet standard car connection and specialized water-proof connector, then the pumps can be quickly and efficiently integrated into vehicles.

2.  With -40°C~125°C  working temperature, TOPSFLO TA50 engine pre-heating & parking heater pumps provide the vehicles an efficient working environment even at extreme outdoor temperatures and in bad weather conditions.

3.  Special design to meet car vibration working requirement, car power supplying way which occur peak voltage or unstable voltage.

4.  With polarity protection function, then the pump will not burned by wrong wiring.tailored to the specific vehicle system.

Engine Auxiliary Water Pump, Motorcycle Automotive Electric Water Pump

■ Specifications
Max Flow Rate 23L
Max Static Lift 2.5M 3M
Rated Voltage 12V 24V
Impeller Type Open impeller
Liquid Temperature -40-125°C
Pump Theory Centrifugal pump
Motor Type Brushless DC motor
Media Pure Water,antifreeze
Use Place Indoor
Working Voltage Range 6~16V   12~28V
Ideal Life Time 20000 Hours
Working Mode Continuous
OD of Inlet 20mm
OD of Outlet 20mm
Power Supply DC power supply, battery
Protection Functions polarity protection ·Blocked protection
Remarks Can’t dry-running, not Self-priming
■ Parameter

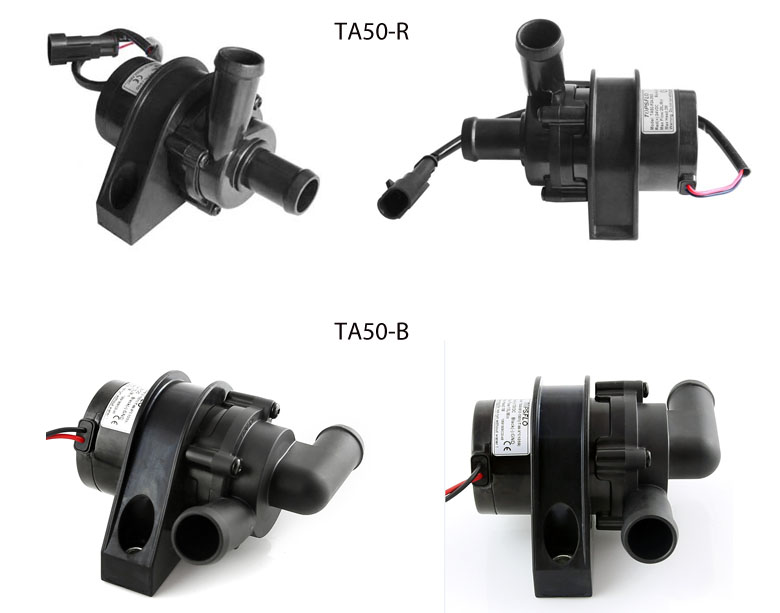

Model Product Code  Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
TA50 TA50-R12-2302 23 12 1.25 2.5 15
TA50-R24-2303 23 24 0.75 3 18
TA50-B12-2303 23 12 1.25 2.5 15
TA50-B24-2303 23 24 0.75 3 18

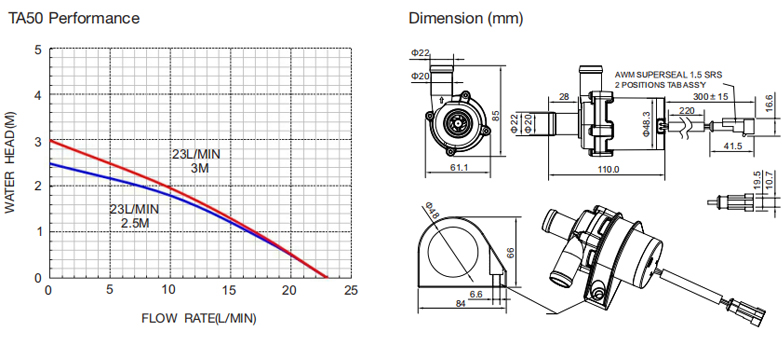

■ Curve & Dimension
Engine Auxiliary Water Pump, Motorcycle Automotive Electric Water Pump | Car Pump Manufacturer
