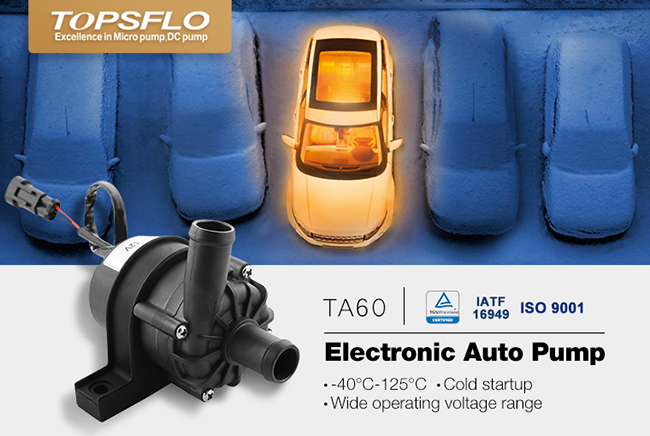

Electric Auto Circulation Pump TA60

  • Max Flow Rate: 34L 37L
  • Max Static Lift: 8.5M
  • Rated Voltage: 12V 24V
  • impeller Type: open impeller
  • Lqiuid Temperature: -40-125°C

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • Electric auto circulation pump
■ Overview



 Car Engine Preheater Pump Cold Start System Engine Heaters Pump Manufacturer
♦ -40°C-125°C    ♦ Cold startup         ♦ Wide operating voltage range

 Low vibration





Features:

·High efficiency ECM brushless DC motor with long lifetime.
·Heavy duty work, can sustain 24 hours continuous running.
·Durable permanent magnetic rotor & high density ceramic shaft.
·Advanced magnetic driving technology, static-seal without leakage forever.
·Replacing position sensor by micro processor position calculation, -40°C~125°C wide operating temperature is realized, suitable for extreme outdoor environment.
·Optimized 3 phase motor high efficiency design, combined with low-resistance copper wire, achieving large flow and low temperature rise.
·Anti-vibration pump rubber bracket designed for automotive vibration working condition.
·Highly adaptable circuit designed specially for unstable automotive voltage and peak voltage.
·Automotive water-proof connector.
·Applied liquid: pure water, antifreeze solution.
·Low or no maintenance.
·Low power consumption

·IP68



Protection functions:
·Automatic polarity protection ·over-voltage protection,Blocked-Protection

·over-current protection ·constant power output ·dry-running protection



Application:
Electric Vehicle Charging Pile Cooling Circulation
EV Charging Pile
Electric Vehicles Inverter Cooling System
Electric Vehicles Battery Cooling System
Car engine cooling circulation pump
Car engine preheating pump
Heating system (Car Auxiliary heaters & parking heaters)
Starting engine heater pump
Engine Cold Start System pump
Electric vehicles water circulation system
Normal Hot Water Circulation pump
Liquid Transfer pump
General Purpose Pumping



Engine Auxiliary Water Pump

■ Specifications
Max Flow Rate 34L 37L
Max Static Lift 8.5M
Rated Voltage 12V 24V
Impeller Type open impeller
Liquid Temperature -40-125°C
Pump Theory Centrifugal pump
Motor Type 3 phase motor
Media Pure Water,antifreeze
Waterproof Class IP68
Use Place Indoor
Working Voltage Range 6~18V  12~28V
Power Consumption 60W
Noise Class form 1M 50dB /Max
Ideal Life Time >20000 Hours
Working Mode Continuous
OD of Inlet 22mm
OD of Outlet 22mm
Power Supply DC power supply, battery
Protection Functions Automatic polarity protection,over-voltage protection,over-current protection,
constant power output,dry-running protection,Blocked-Protection
Remarks Not Self-priming
■ Parameter
Model Product Code Max Flow Rate((L/M)) Rated Voltage(V) Current(A) Max Water Head(M) Power(W)
TA60 TA60-R12-3409 34L 12 4.5 8.5 54
TA60-R24-3709 37L 24 2.5 8.5 60
■ Curve & Dimension
Car Engine Preheater Pump Cold Start System Engine Heaters Pump Manufacturer

Engine Auxiliary Water Pump
