Water Heater Boosting Pump TL-C01

  • Motor: BLDC Motor
  • Certified: WRAS,CE,RoHS,FDA,REACH
  • Application: Water Heater ,Electric Shower Boosting

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • Water Heater Pump shower pump
  • Water Heater Pump shower pump
  • Water Heater Pump shower pump
■ Overview

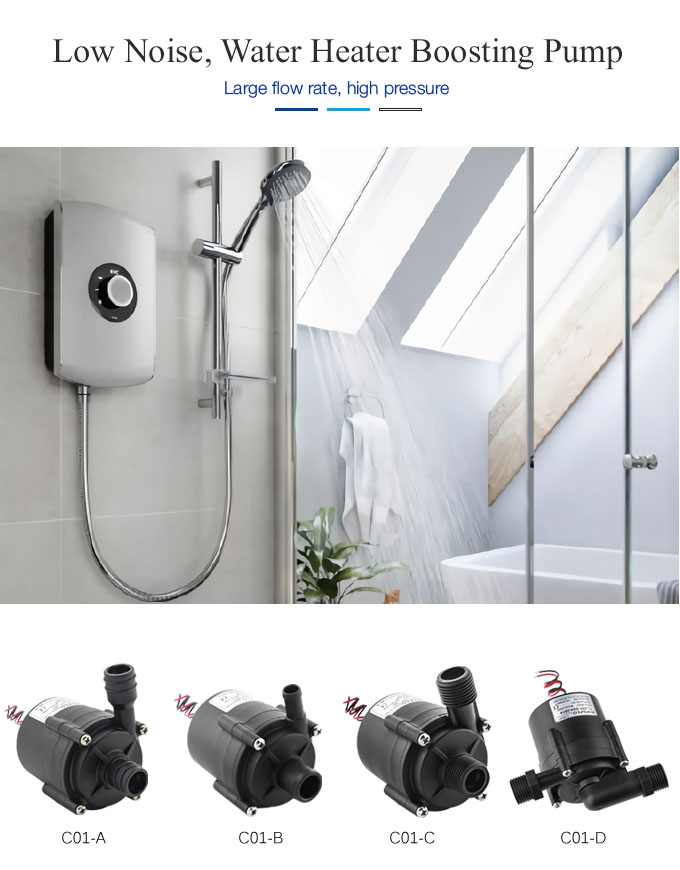

water heater pump

Large flow rate, high pressure

24L/min 11L

Boosting Water Pressure, More Stable Flow Rate
High efficiency motor and rotor design, 30% higher efficiency than competitors' with similar size

Ultra-quietness Like Breathing
5dB Adopting ultra-quiet design, noise 5dB lower than industry average

No Leakage, More Reliable
Static sealing design, imported Japanese PPE, strict testing, no leakage forever



More Features:

♦ Advanced magnetic driving technology for static-seal,without any leakage forever

♦ Heavy duty work,can sustain continuous work

♦ High efficiency brushless DC motor with long lifetime 20,000hours

 3-phase motor for lower power consumption and lower fever

♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft

♦ Specializing closed-type impeller for lower water loss bring higher efficiency

 High precision one-time injection magnetic rotor for stable lower vibration

♦ High temperature materials for liquid temperature ≥90°C

♦ Low or no maintenance

♦ Food grade materials

 Imported Japan XYRON PPE material, certificated by WRAS & NSF.
 Certificate: CE,RoHS,FDA,REACH,WRAS,ISO9001,TUV IATF16949


Definitions:
Dry-running protection (customized functions)
Drive circuitry can detect no or little liquid in pump chamber and will stop the pump to prevent damage, pump is then restarted manually by disconnecting and reconnecting it to the power supply.

Over voltage protection
When the voltage over 28V, the pump will auto-protect and shut off own power supply, when the voltage falls below 28V, the pump will restart automatically.


DC pump


Usage Note:
1.Dry-running is prohibited.
2.Reverse polarity is not allowed (except customized).
3.The pump if dropped or with heavy vibration do not use.
4.Liquid contain impurities or magnetic particles are not allowed.
5.Liquid temperature over 90°C is not allowed (except high temperature models).
■ Specifications
Max Flow Rate 18L/MIN 24L/MIN
Max Static Lift 8M ,11M
Rated Voltage 12V / 24V
Impeller Type Closed impeller
Motor Type Three-phase brushless DC motor
Food Grade(Y/N) Y
Liquid Temperature -40-100°C
Pump Theory Centrifugal pump
Media Pure Water
Waterproof Class IP68
Use Place Indoor or Outdoor
Working Voltage Range 6~18V or 12~28V
Ideal Life Time 20000 Hours
Working Mode Continuous
Power Supply DC power supply, battery, solar powered
Protection Functions Over-Voltage Protection Over-Current Protection Blocked-Protection,
Dry-running Protection(Customized)
Customized functions PWM, 0~5V speed control,/PV solar panel driven directly,FG(RPM) signal wire,/S submersible
Remarks Can’t dry-running, not Self-priming
■ Parameter
Model     Product Code  Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
C01-C TL-C01-C12-1706 17 12VDC 2.0 6 24
TL-C01-C12-2008 20 12VDC 2.8 8 33.6
TL-C01-C24-1908 19 24VDC 1.33 8 31.92
TL-C01-C24-2411 24 24VDC 2 11 48
■ Curve & Dimension
China Water Heater Boosting Pump
