TF30D-C

  • Motor Type: Brushless DC motor
  • Max flow rate: water:0.8L/Min, gas:5L/Min
  • Water lift: ≥10M , Max vacuum: 55Kpa
  • Voltage: 6V/12V/24V
  • Ideal Life Time: 15000 Hours
  • Pump Theory: Diaphragm pump

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • Miniature Diaphragm Pump
■ Overview
The TF30D Series offers multiple component configurations allowing them to be used for either vacuum operation, liquid transfer, or alternating operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.

TF 30D pumps can be mounted in any position and can deliver up to 350 ml/min depending on the model and will operate against pressures of up to 1 bar.

Features:
Small and powerful
Micro design and maximum performance resulting from built-in technology are the outstanding characteristics of this product.
Self-priming and excellent for pressure
Sophisticated diaphragm technology and precise valve structures enable performances from 8.85 in .Hg suction and 14.5 PISG pressure.
Dry running, durable and maintenance free
The carefully considered design of these pumps allows them to be run dry and ensures safe operation and a long life even under the most severe conditions.
Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
Uncontaminated flow
No contamination of the media due to oil-free operation
Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ,material combinations for the parts which allows the corrosive gas to be pumped.
Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected

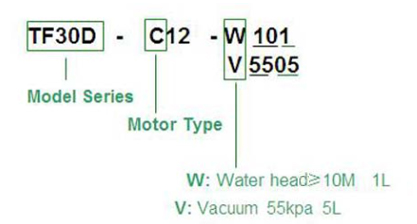

MODEL CODE FOR EASY ORDERING
The model code is identical to the order number,it is made up as follows:
Miniature diaphragm liquid pump TF30D-C

C Motor-  Coreless Brushless DC Motor , lifetime 15,000hours
(Note: other lifetime choices also available: A Motor -3000hours Premium duty brushed; B Motor -1500hours normal brushed; D Motor- 15000hours coreless brushless; H Motor- 10000 brushless.)


Application:

The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Environmental/water treatment
Food/ toxicology
Laboratory
Cleaning industry
Printing
Fireplace
Miniature diaphragm liquid pump TF30D-C use

■ Specifications
1 Motor Type Brushless DC motor
2 Max flow rate water:0.8L/Min, gas:5L/Min
3 Water lift ≥10M , Max vacuum: 55Kpa
4 Voltage 6V/12V/24V
5 Ideal Life Time 15000 Hours
6 Pump Theory Diaphragm pump
7 Ambient Temperature 41 to 158 F(5 to 70C)
8 Use Place Indoor
9 Media: Most Liquids and Gases
10 Noise Class form 1M 50dB /Max
11 Working Mode Continuous or Interrupt
12 Inlet OD 4.2mm/ID 3.6mm
13 Outlet OD 4.2mm/ID 3.6mm
14 Hose suggestion: ID 4.0mm
15 Dimension 80mm*31mm*60mm
16 Weight 250 g
17 Materials pump head Nylon membrane EPDM / PTFE valve EPDM / FPM
18 Functions Can dry-running, Self-priming
■ Parameter
Model Liquid Pump Vacuum Pump Rated Voltage No-load Current MaxHead Max Vacuum Max Flow
(Item Number) (Item Number for mix-usage) (Vdc) (A) ( M ) (KPa) (L/min)
TF30D-C TF30D-C12-W101 TF30D-C12-V5505 6 /12 / 24 0.4/0.24/0.15 ≥10 -55 water: 0.8  gas: 5
■ Curve & Dimension
Miniature diaphragm liquid pump tf30d-c-performance-curve

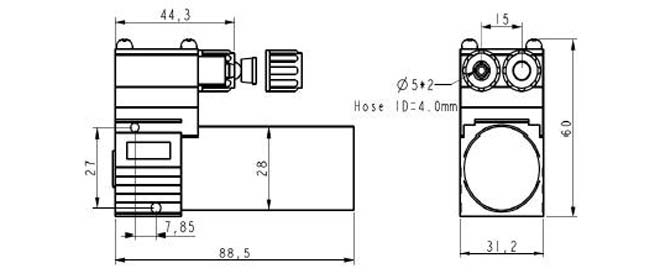

Dimension:
Miniature diaphragm liquid pump tf30d-c-dimension
