TF30A-A ink pump

  • Motor Type: Brush DC motor
  • Max flow rate: water:0.4L/Min, gas:4L/Min
  • Water lift: ≥10M , Max vacuum: 70Kpa
  • Voltage: 6V/12V/24V
  • Ideal Life Time: 3000 Hours
  • Functions: Can dry-running, Self-priming

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • small 24v dc water pump
■ Overview




Features:

1.Excellent Materials Suitable for Various Ink
• Ink types we can handle include UV cured, titanium dioxide pigmented, silver and other metal particles,FDA/NSF approved, security, in addition to the more traditional water, and solvent based inks.
• For corrosive inks, choose among wetted parts of Nylon, PTFE, PVDF, peroxide-cured EPDM, FFPM, FPM, PP, PPS, 316 stainless steel and many others.

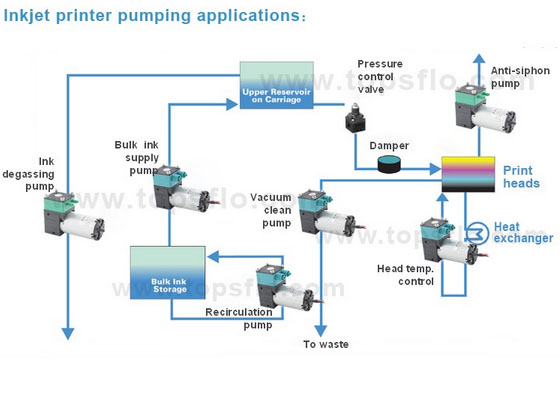

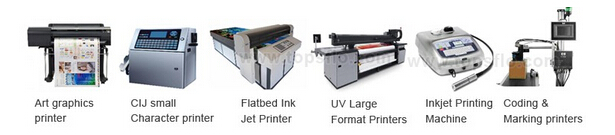

2.Ideal for All Types of Inkjet Printers
♦   Art graphcs printers           ♦   Coding & Marking printers             ♦   Inkjet printing machine
♦   CIJ Small character printer         ♦   UV large format printers             ♦   Flatbed ink jet printers etc.

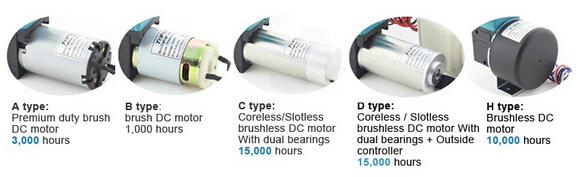

3.Optional for Different Life Span Motors
    Long life span ink pump system
                                                   -- The foundation of reliable printers

Motor is to a pump what heart is to a person.  Compared with (some other brand) markets common pumps, TOPSFLO is featured with the following advantages.
♦  Optional motor types as above

♦  Longer Lifetime

♦  less electromagnetic interference

Equiped with anti-electromagnetic interference capacitors, Topsflo pumps cause little interference to your facility.

♦  less temperature rise

Are you bothered if pump gets heat soon when it's working in your facility? Topsflo adopts the most advanced technology as KNF does, the pump won't get much heat during working,especially outside controller models.

♦  Adjustable flowrate by 0-5V PWM speed control

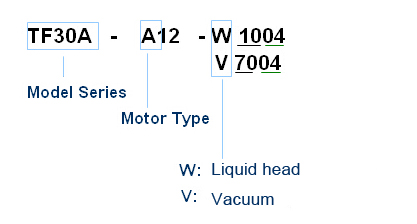

MODEL CODE FOR EASY ORDERING
The model code is identical to the order number,it is made up as follows:


A Motor- Premium duty brush DC motor, lifetime 3,000hours
(Note: other lifetime choices also available: B Motor -1500hours normal brushed; C or D Motor- 15000hours coreless brushless; H Motor- 10000 brushless.)



■ Specifications
1 Motor Type Brush DC motor
2 Max flow rate water:0.4L/Min, gas:4L/Min
3 Water lift ≥10M , Max vacuum: 70Kpa
4 Voltage 6V/12V/24V
5 Ideal Life Time 3000 Hours
6 Functions Can dry-running, Self-priming
7 Pump Theory Diaphragm pump
8 Ambient Temperature 41 to 158 F(5 to 70C)
9 Use Place Indoor
10 Media: Most Liquids and Gases
11 Noise Class form 1M 50dB /Max
12 Working Mode Continuous or Interrupt
13 Inlet OD 4.8mm/ID 2.6mm
14 Outlet OD 4.8mm/ID 2.6mm
15 Hose suggestion: ID 4.0mm
16 Dimension 80mm*31mm*58mm
17 Weight 220 g
18 Materials pump head Nylon membrane EPDM / PTFE valve EPDM / FPM

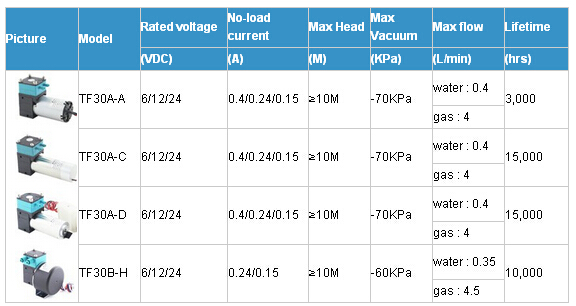

■ Parameter
Model   Liquid Pump Vacuum Pump ( only vacuum reference TM30B-A12 ) Rated Voltage No-load Current Max Head Max Vacuum Max Flow
(Item Number) (Item Number for mix-usage) (Vdc) (A) ( M ) (KPa) (L/min)
TF30A-A TF30A-A12-W1004 TF30A-A12-V7004 6 /12 / 24 0.4/0.24/0.15 ≥10M -70 water : 0.4 gas : 4

 TF30 Series ink Pump

■ Curve & Dimension
tf30a-a-performance-curve

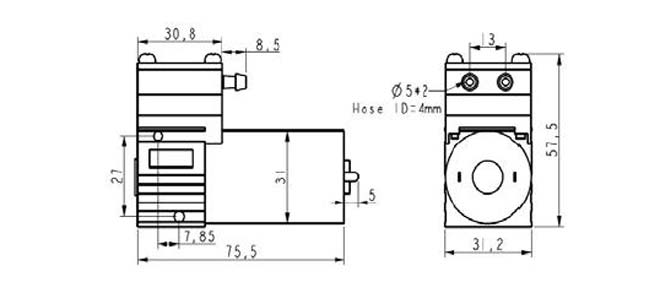

Dimension:
tf30a-a-dimension
