TM40-B

  • Motor Type: Brush DC motor
  • Max flow rate: 13L/min
  • Max pressure: 250Kpa, Max vacuum: 75Kpa
  • Voltage: 12V
  • Ideal Life Time: 1200 Hours
  • Working Mode: Continuous or Interrupt

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • TM40-B,dc small 12v air pump,dc small brush air pump,diaphragm pump,gas pump
■ Overview

TOPSFLO micro diaphragm pumps and compressors are based on a simple principal,the circular power from the motor is converted into oscillating movement by aneccentric, which moves up and down its central point, this motion is then transferredto a diaphragm by means of a connecting rod, an elastic diaphragm, which inconjunction with an inlet and outlet valve creates a pumping action.

TM 40 pumps can be mounted in any position and can deliver up to 11 l/min, 13L/min (dual head) depending on the model and will operate against pressures of up to 250Kpa.

Features:
1.Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
2.Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
3.Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
4.Uncontaminated flow
no contamination of the media due to oil-free operation
5.Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
6.High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
7.Extreme chemical resistance
The use of chemically resistant materials optional such as FFPM, PTFE, FPM or other material combinations for the parts which allows the corrosive gas to be pumped.
8.Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected

Wetted material options:
1.Optional membrane materials:
EPDM for normal air
PTFE for corrosive air,like acid, alkali air, ozone etc.

2.Optional valve materials:
EPDM for normal air
FPM for corrosive air, like acid, alkali, ozone,etc.

Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
■ Specifications





Model

Pressure Pump Vacuum Pump Rated Voltage No-load Current Max Pressure Max Vacuum Max Flow
  (Item Number) (Item Number) (Vdc) (A) (KPa) (KPa) (L/min)
TM40-B TM40-B12-P25013         TM40-B12-V7513 12 0.8 250 -75 13
  TM40-B12-P22011 TM40-B12-V7011 12 0.6 220 -70 11
" P " means pressure pump, " V " means vacuum pump, "12/24" means different voltages optional.
Pump Weight:280g; Pump Size:88*mm*65mm*40.5mm; Inlet&Outlet:OD 6.5mm/ID 3.4mm,hose suggestion:ID 5.0mm



Materials:pump head PPE, membrane EPDM, valve EPDM
Motor type and code:“B”means economical brush DC motor (reference lifetime ≥1,000hours)



■ Parameter

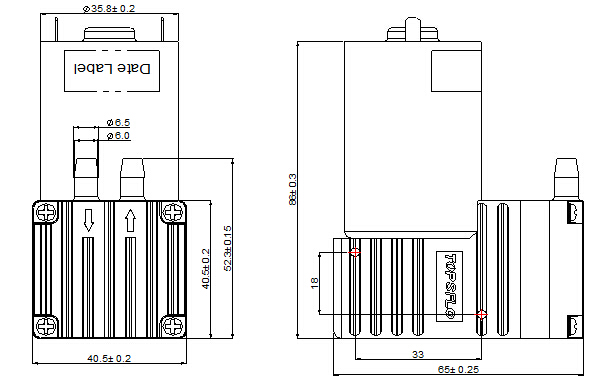

■ Curve & Dimension
