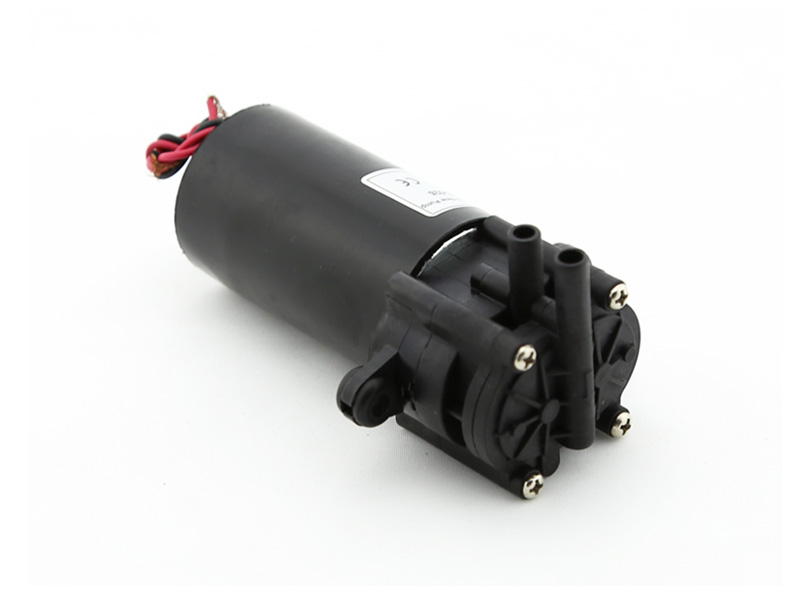

TG-02

  • Motor Type: Brush DC motor
  • Max flow: 3L/min
  • Max pressure: 3Bar
  • Rated Voltage: 12V / 24V
  • Suction Height: 0.5M, 0.6M

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • Micro Gear Pumps
■ Overview

Direct Drive DC Micro Gear Pump Features:

1.The pump shell is made of high quality plastic, durable in use. Excellent self-priming,
2.Chemical resistance, high pressure, suitable for the extraction of a variety of media.
3.Low starting current, high efficiency, stable and reliable operation.
4.Low power consumption, energy saving, environmental protection.
5.It is mainly used for coffee machine, water dispenser, beveage,drone spraying pesticide and so on.
6.Pump milk, cooking oil, weak acid and weak base, gasoline and diesel oil.

Direct Drive DC Micro Gear Pump Application:

This product uses the structure of slowdown, the use of brush motor drive, with a small volume of high pressure characteristics.
Applicable to the occasion of intermittent transmission of media. Widely used in spray, sanitary ware, spray, ice maker, water dispenser,Coffee making machines, drinking fountains,Wine dispensers,Beverage dispensing,car wash window pump. Air conditioning pump. Humidifier, medical equipment, food and other departments, pesticides, water treatment, filling machines, electrical appliances industry, experimental factories.


■ Specifications
Motor Type Brush DC motor
Max flow 2.5L/min
Max pressure 2.5Bar
Rated Voltage 12V / 24V
Suction Height 0.5M, 0.6M
Pump Theory Gear pump
Use Place Indoor
Media: A variety of liquid and oil
Ideal Life Time TG-02S 400hour , TG-02B 800hour
Working Way Interrupt
Inlet OD 6.0mm/ID 4.0mm
Outlet OD 6.0mm/ID 4.0mm
Weight TG-02S 135g , TG-02B 250g
Functions Self-priming


■ Parameter
Model Item Number Max Flow (L/Min) Max Pressure (Bar) Rated Voltage (V) Voltage Scope (V) Power (W) Suction Height ( M)
TG-02S TG-02S-12-017 1.7 1.5 DC12 5~14 12 0.3M
nozzles on same side TG-02S-24-017 1.7 1.5 DC24 8~26 12 0.3M

TG-02BT TG-02BT-12-025 2.5 3 DC12 5~14 40 0.6M
TG-02BT-24-025 2.5 3 DC24 8~26 40 0.6M
Note:
1.TG-02S and TG02BT with the same pump head, nozzles on same side
2.TG-02BT in motor size a little bigger, with length of 104mm, width of 38mm.
3. TG02BT lifetime reference is 800hours, TG02S lifetime reference is 400hours.
4. TG02BT noise slightly lower.


■ Curve & Dimension

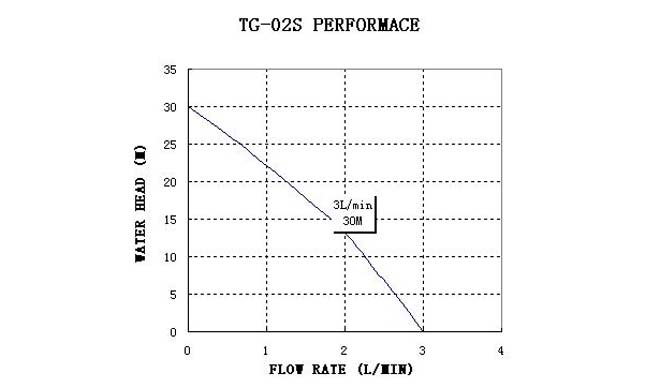

Direct Drive DC Mini Gear Pump-performance-curve

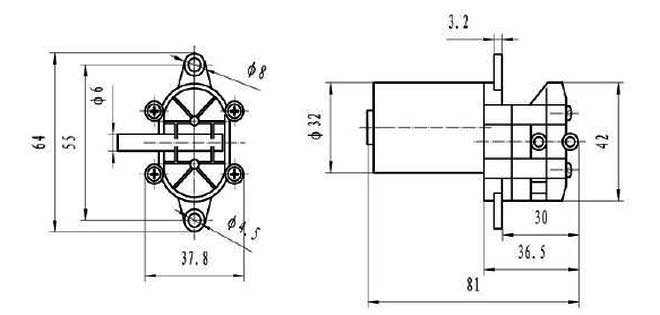

Dimension:
tg-02-dimension
