TL-C01-C

  • Max Flow Rate: 18L/MIN 22L/MIN
  • Max Static Lift: 8M ,11M
  • Rated Voltage: 12V / 24V
  • Impeller Type: Closed impeller
  • Motor Type: Three-phase brushless DC motor
  • Food Grade(Y/N): Y

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • 24v water heater boost pump
■ Overview

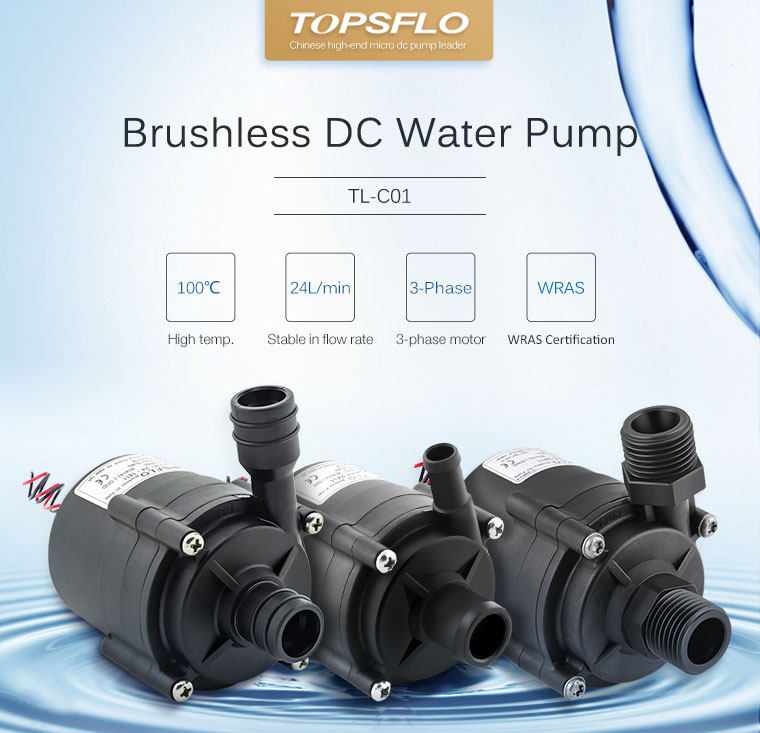

Our TL-C series design features micro centrifugal pumps powered by brushless DC motors. They are designed to be cool, quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, enable the pumps to meet a full spectrum of user needs, with emphasis on ease of installation, operation and maintenance.

Features:

♦ Advanced magnetic driving technology for static-seal,without any leakage forever

♦ Heavy duty work,can sustain continuous work

♦ High efficiency ECM brushless DC motor with long lifetime 20,000hours

♦ 3-phase motor for lower power consumption and lower fever

♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft

♦ Specializing closed-type impeller for lower water loss bring higher efficiency

♦ High precision one-time injection magnetic rotor for stable lower vibration

♦ High temperature materials for liquid temperature ≥90°C

♦ Low or no maintenance

♦ Food grade materials



Imported Japan XYRON PPE material, certificated by WARS & NSF.

Definitions:
Dry-running protection (customized functions)
Drive circuitry can detect no or little liquid in pump chamber and will stop the pump to prevent damage, pump is then restarted manually by disconnecting and reconnecting it to the power supply.

Over voltage protection
When the voltage over 28V, the pump will auto-protect and shut off own power supply, when the voltage falls below 28V, the pump will restart automatically.

Over load protection function
This means that when the current is over the rated current, such as can arise if the impeller is stuck due to debris. The pump will automatically stop to prevent damage, and will restart when the current falls again.

DC pump

Application:
The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.
1. Liquid transfer general purpose pumping
2. Hot water circulating system
3. Electronics Cooling Water Circulation Chiller Systems
4. Liquid filling and transfer in food, beverage processing, vending machines
5. Instant electric water heater, electric shower.
6. Circulating systems for homes, RV's and boats
7. Cleaning equipment, purification and water treatment.
8. Irrigation solar pump, swimming pool circulation
9. Electric cars: radiators, heaters
10. Automotive air conditioning
11. Computer CPU cooling circulation
12. Water heating mattress

Usage Note:
1.Dry-running is prohibited.
2.Reverse polarity is not allowed (except customized).
3.The pump if dropped or with heavy vibration do not use.
4.Liquid contain impurities or magnetic particles are not allowed.
5.Liquid temperature over 90°C is not allowed (except high temperature models).
■ Specifications
Max Flow Rate 18L/MIN 24L/MIN
Max Static Lift 8M ,11M
Rated Voltage 12V / 24V
Impeller Type Open impeller
Motor Type Three-phase brushless DC motor
Food Grade(Y/N) Y
Liquid Temperature 0-100°C
Pump Theory Centrifugal pump
Media Pure Water
Waterproof Class IP42
Use Place Indoor or Outdoor
Working Voltage Range 6~16V or 12~28V
Power Consumption 36W, 48W,55W
Noise Class form 1M 48dB /Max
Ideal Life Time 20000 Hours
Working Mode Continuous
Power Supply DC power supply, battery, solar powered
Protection Functions automatic blocked protection,, overvoltage protection, overcurrent protection, overload protection
Flow Rate Regulation (customized functions) PWM, 0~5V speed control
Remarks Can’t dry-running, not Self-priming
■ Parameter
Model     Product Code  Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
  TL-C01-C12-1706 17 12VDC 2.2 6 26.4
TL-C01-C thread nozzles G1/2 TL-C01-C24-1908 19 24VDC 1.5 8 36
TL-C01-C12-2008 20 12VDC 2.8 8 34
TL-C01-C24-2411 24 24VDC 2 11 48
   Note:  1.pump itself meet: /F,food grade  2./H type 70℃<liquid105, not H normal type liquid70   3./S type can be customized, if submersible liquid should be 50   4./PV Powered by solar panel directly    5./PWM or 0~5V speed control

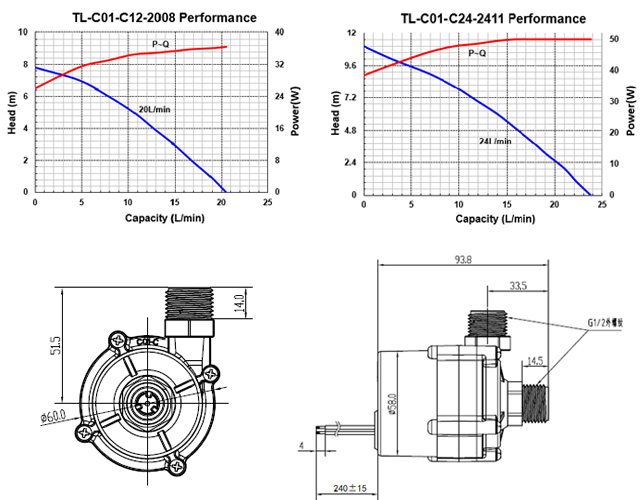

■ Curve & Dimension
