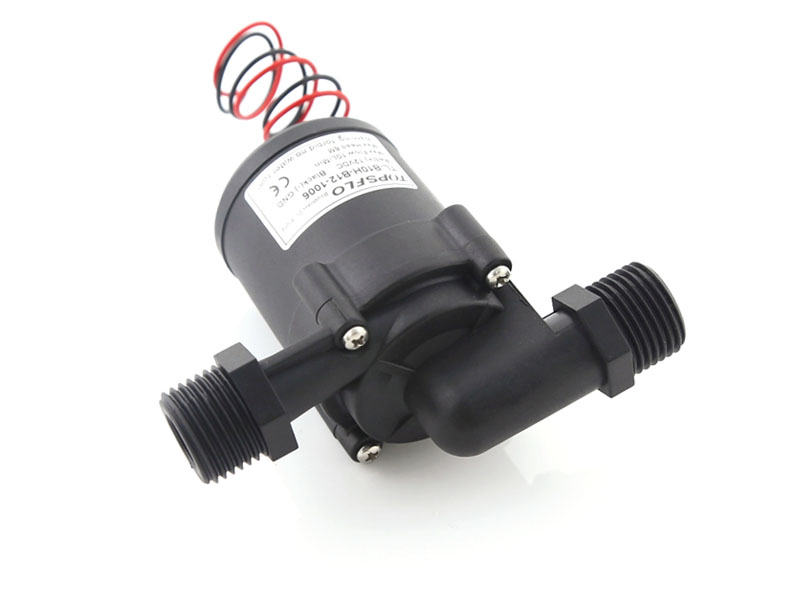

TL-B10-B

  • Max Flow Rate: 7L/min 9L/MIN 12L/MIN
  • Max Static Lift: 3M 5 M 8 M
  • Rated Voltage: 12V / 24V
  • mpeller Type: Closed impeller
  • Motor Type: brushless DC motor
  • Liquid Temperature: 0-100°C

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • 24V brushless centrifugal water pump
■ Overview
Our TL-B series design features micro centrifugal pumps powered by brushless DC motors. They are designed to be cool, quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, enable the pumps to meet a full spectrum of user needs, with emphasis on ease of installation, operation and maintenance.

Features:

1.Advanced magnetic driving technology for static-seal, without any leakage forever
2.Motor widely voltage designed suitable for battery power supplying with peak-low voltage damply
3.Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
4.Heavy duty work, can sustain continuous 24 hours work
5.Special designed high efficiency closed-type impeller

6.Sustain 100°C hot water circulation
7.All wetted materials FDA approved to be safety usage
8.Low or no maintenance
9.Blocked protection

10.Polarity protection


Application:

The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.
1. Liquid transfer general purpose pumping
2. Water heating mattress
3. Hot water circulating system
4. Electronics Cooling Water Circulation Chiller Systems
5. Liquid filling and transfer in food, beverage processing, vending machines
6. Circulating systems for homes, RV's and boats
7. Cleaning equipment, purification and water treatment
8. Fountain, aquariums and small fish ponds,
9. Electric cars: radiators, heaters
10. Automotive air conditioning
11. Computer CPU cooling circulation

Usage Note:
1.Reverse polarity is not allowed (except customized).
2.The pump if dropped or with heavy vibration do not use.
3.Liquid contain impurities or magnetic particles are not allowed.
4.Liquid temperature over 80°C is not allowed (except high temperature models).
5.Acidic or alkaline liquid is prohibited (except customized).
■ Specifications
1 Max Flow Rate 7L/MIN ,9L/MIN 12L/MIN
2 Max Static Lift 3M 5 M 8 M
3 Rated Voltage 12V / 24V
4 Impeller Type Closed impeller
5 Motor Type brushless DC motor
6 Liquid Temperature 0-100°C
7 Pump Theory Centrifugal pump
8 Ambient Temperature -10-50°C
9 Media Pure Water
10 Waterproof Class IP42 or Submersible (optional)
11 Use Place Indoor Outdoor
12 Working Voltage Range 6~14V or 12~26V
13 Power Consumption 11~19.2W
14 Noise Class form 1M 40dB /Max
15 Ideal Life Time 20000 Hours
16 Working Mode Continuous
17 OD of Inle thread nozzles:
G1/2
18 OD of Outlet thread nozzles:
G1/2
19 Power Supply DC power supply, battery, solar powered
20 Protection Functions overload protection
21 Remarks Can’t dry-running, not Self-priming





■ Parameter
Model     Product Code  Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
  TL-B10-B12-0703 7±15% 12VDC 0.6±15% 3±1 7
TL-B10-B  thread nozzles G1/2 TL-B10-B12-0905 9±15% 12VDC 1.4±15% 5±1 16.8
TL-B10-B24-0703 7±15% 24VDC 0.35±15% 3±1 10
TL-B10-B24-0905 9±15% 24VDC 0.55±15% 5±1 15
  TL-B10-B24-0905 9±15% 24VDC 0.55±15% 5±1 15
   Note:  1.pump itself meet: /F,food grade  2./H type 70℃<liquid105, not H normal type liquid70   3./S type can be customized, if submersible liquid should be 50   4./PV Powered by solar panel directly    5./PWM or 0~5V speed control
■ Curve & Dimension

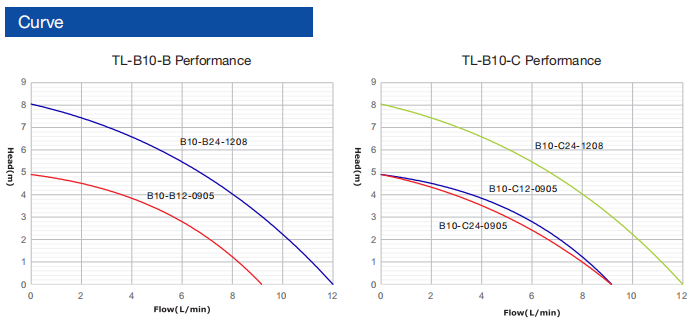

Curve:

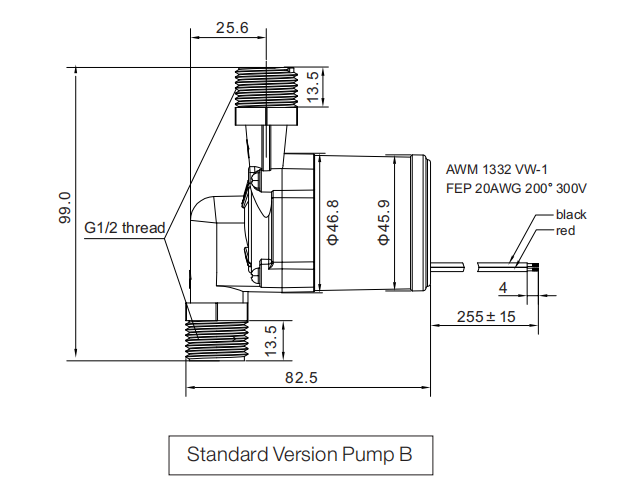

Dimension(mm)
