12v 24v Brushless Direct Drive Pump

  • Voltage: 12v or 24v
  • Flow rate: 0~37L/min
  • Water head: 0~11meter
  • Lifetime: 25000h
  • Liquid: water,hot water,beverage,coolant,etc

We're here to help:

Easy ways to get the answers you need.

  (※ Click this button to inquiry)
  • 24v DC Water Pump
  • 12v 24v Water Pump
  • brushless dc pump
■ Overview

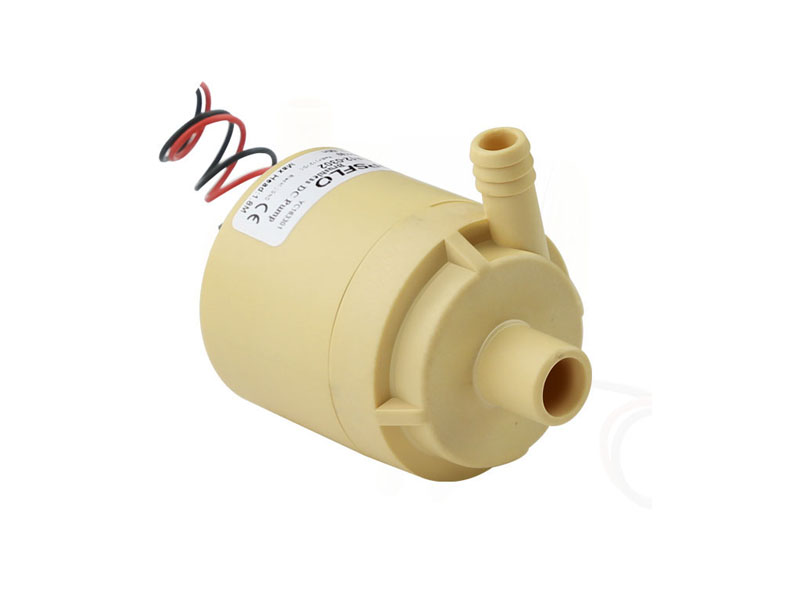

   Mini Brushless DC Centrifugal Pump

24v dc water pump manufacturer
Brushlss DC Pump

About TOPSFLO Factory

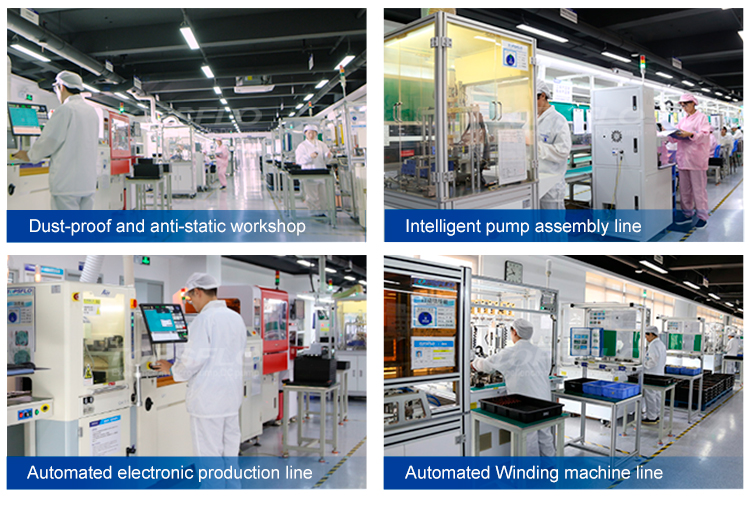

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 50 patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification




Brushlss DC Water Pump TL-B10 CUSTOMIZED



Get Samples  & Quotes Report, please contact us!

Mini Brushless DC Centrifugal Pump Mini Brushless DC Centrifugal Pump Mini Brushless DC Centrifugal Pump Mini Brushless DC Pump
TL-A02 TL-B03 TL-B10 TL-C01-C
24v dc water pump c01 factory mini water pump 24v 12v 24v Brushless Direct Drive Pumps Manufacturer dc circualtion pump D01
 TL-C01-A TL-C01-B TL-C01-F TL-D01
Mini Brushless DC Centrifugal Pump Mini Brushless DC Centrifugal Pump Mini Brushless DC Centrifugal Pump Home Beer Brewing pump, hot water circulation pump
TA60 TA50 TS5 TD5



Our TL series design features micro centrifugal pumps powered by brushless DC motors. They are designed to be quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, food grade material, high-temperature resistance.

Features:

   Precision temperature control - TL series unique dual bearing system reduces heat generation and helps your system maintain temperature accuracy.
♦  Reduce system size - TL series canned motor design offers the most compact package available.
♦  Extend system life - Manufactured under strict TUV ISO 9001/IATF16949 quality standards and assembled with the most chemically-inert materials, TL series life will typically exceed 30000hours.
♦  Reduce system noise - With documented sound levels at 40 dB or lower, TL series allows for whisperquiet operation.

More Features:

.High efficiency brushless DC motor with long lifetime 20,000hours
.Heavy duty work,can sustain continuous 24hours work
.All wetted materials FDA approved to be safety usage
.IP protection level: IP68, submersible directly
.Blocked protection

• No rotor cracking
Japan imported high-precision rotor, more wear-resistant

• No electronic failure.
The design of the electronic scheme has sufficient margin to prevent electronic failure and electrostatic breakdown.

• High batch consistency
100% full inspection process, noise batch consistency is stable at 1-2dB difference
• Certificate: CE,RoHS,FDA,REACH,WRAS,TUV IATF16949/ISO9001
 Intelligent control : PWM or 0~5V speed control , FG (RPM) signal wire


Application:
Water dispenser                             Cooling system
Water cooling heating mattress     Juice machine
Chiller cooling                                Medical beauty equipment
Dishwasher                                    Water heater
Electric instant water heater           Intelligent toilet
Automotive                                     Solar water heater
Home brewing                                Liquid transfer general purpose pumping
Medical device                               3D laser printer
EV charger                                     E-mobility chargers
Home energy storage cooling        Solar Inverter Cooling



More
Fuel cellsCogeneration systems (cooling and circulation)
MedicalBiochemical analysis, Cooling systems, Patient temperature management medical equipment, Cooling for laser treatment
Physical/chemical analysis:  Thermostats, Pure water equipment, Different types of analyzers
PhotoAutomatic film developing machines, X-ray film developing machines
SemiconductorsSemiconductor cooling systems
Surface treatmentSmall plating machines
Solar power systemsElectric water heaters, Solar battery heat collectors,Solar hot water circulation
Electric carsRadiators, Heaters,Air conditioning circulation system, E-mobility chargers ,EV charger

Function(
itself Comes with or customized function)

Blocked-Protection

Polarity Protection
Over-Current Protection

Dry-running Protection

Over-voltage protection


■ Specifications
  You want it, We all have !

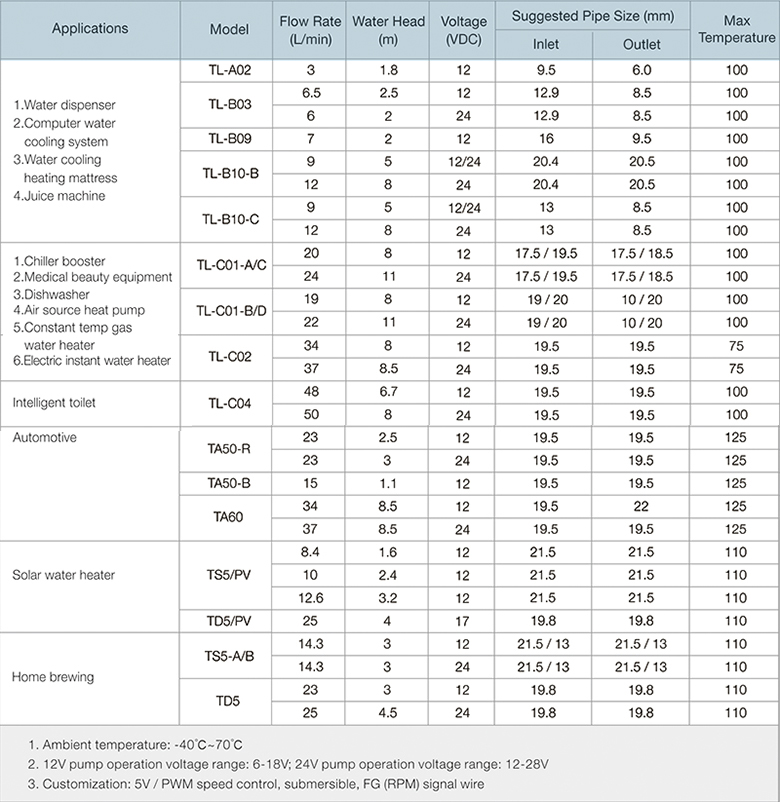

Brushless DC Pump specification

Get more information, please contact us !
■ Parameter
 Get technical information, please feel free to contact us.
■ Curve & Dimension
