About TOPSFLO Factory
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 50 patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification

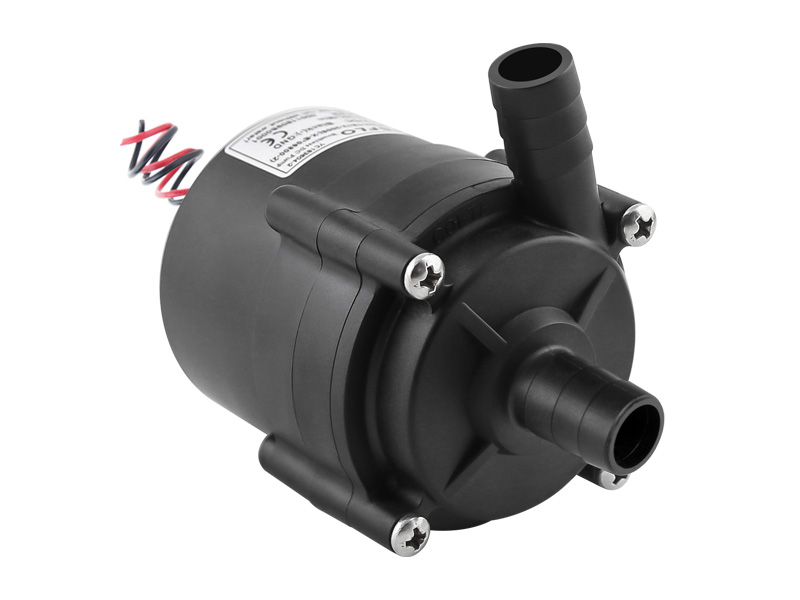

Our TL-C series design features micro centrifugal pumps powered by brushless DC motors. They are designed to be cool, quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, enable the pumps to meet a full spectrum of user needs, with emphasis on ease of installation, operation and maintenance.
Features:
♦ Advanced magnetic driving technology for static-seal,without any leakage forever
♦ Heavy duty work,can sustain continuous work
♦ High efficiency ECM brushless DC motor with long lifetime 30,000hours
♦ 3-phase motor for lower power consumption and lower fever
♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft
♦ Specializing closed-type impeller for lower water loss bring higher efficiency
♦ High precision one-time injection magnetic rotor for stable lower vibration
♦ High temperature materials for liquid temperature 100°C
♦ Low or no maintenance
♦ Food grade materials
♦Imported Japan XYRON PPE material, certificated by WRAS & NSF.
Application:
The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.
1. Liquid transfer general purpose pumping
2. Hot water circulating system pump
3. Electronics Cooling Water Circulation Chiller Systems pump
4. 3D printer cooling water pump
5. Instant electric water heater, electric shower pump
6. Circulating systems for homes
7. Cleaning equipment, purification and water treatment pump
8.Smart toilet boosting pump
9.Boosting applications pump
10.Medical equipment Water pump,Beauty water pump,Gene sequencer cooling pump
11.LED cooling,semiconductor cooling pump
Usage Note:
1.Dry-running is prohibited.
2.Reverse polarity is not allowed (except customized).
3.The pump if dropped or with heavy vibration do not use.
4.Liquid contain impurities or magnetic particles are not allowed.
5.Liquid temperature over 90°C is not allowed (except high temperature models).
